| Components |

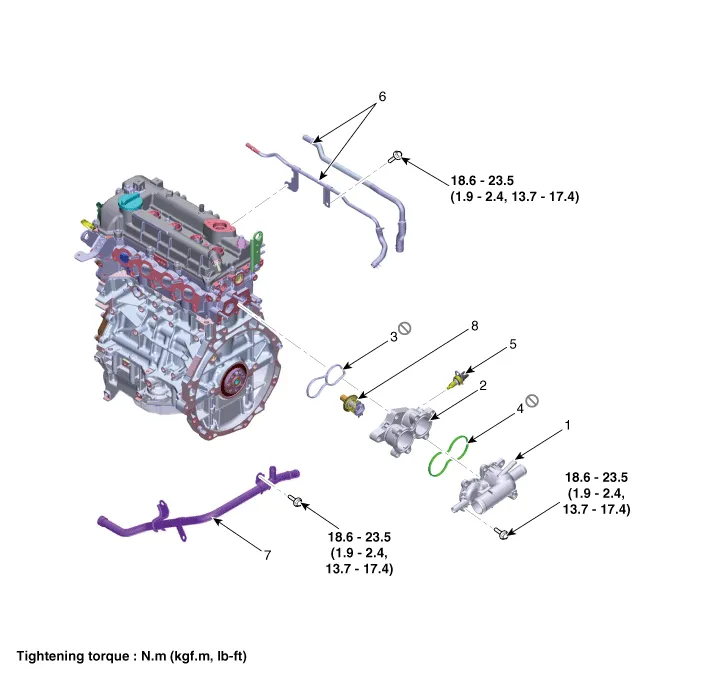

| 1. Water inlet fitting | 2. Thermostat |
TroubleshootingWater Pump Symptoms Possible Causes Remedy Coolant leakage• From the bleed hole of the water pumpVisually check• Check leaks after about ten-minute warming up.
Removal and Installation • Disassembly of the thermostat would have an adverse effect, causing a lowering of cooling efficiency.
Diagnosis With GDS1.The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).※ The diagnostic system (GDS) provides the following information.(1) Self diagnosis : Checking the failure code (DTC) and display.
Replacement1.Disconnect the negative (-) battery terminal. 2.Remove the heater and blower assembly.(Refer to Heater - "Heater Unit") 3.Remove the evaporator core cover (A) after loosening the mounting screws.4.Pull out the evaporator temperature sensor (A) from the evaporator core.
