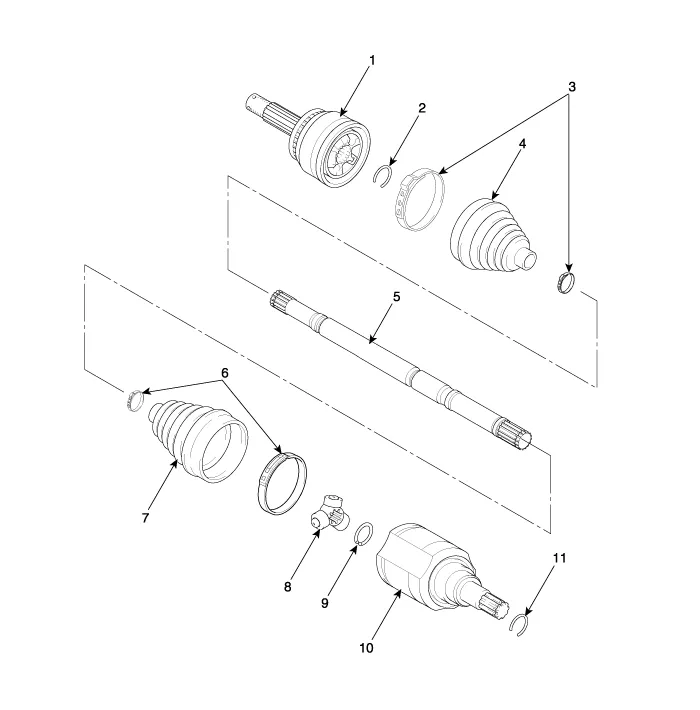

Components

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly
9. Snap ring
10. TJ Housing
11. Circlip

    Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the front hub.

    Disassembly    â€¢ Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
