Hyundai Ioniq (AE): VESS(Virtual Engine Sound System) / Virtual Engine Sound Speaker. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / VESS(Virtual Engine Sound System) / Virtual Engine Sound Speaker. Components and components location

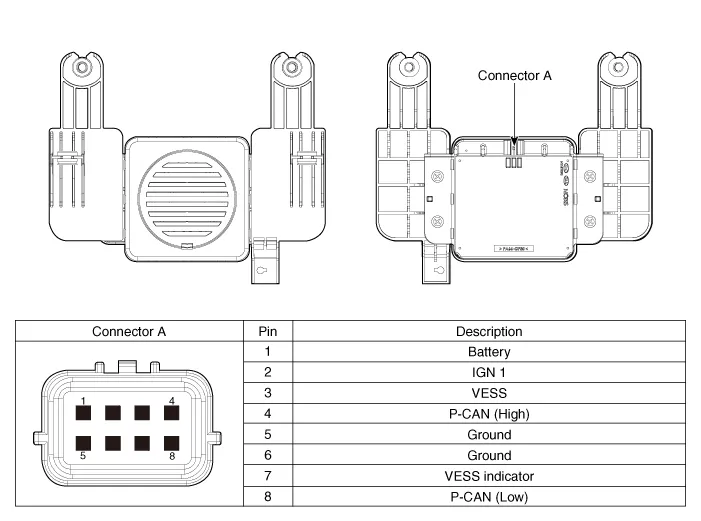

Component Location

    DescriptionThe VESS (Virtual engine sound system) generates engine sound when you start the hybrid system.This sound is for pedestrians to hear vehicle sound because there is no engine sound in hybrid driving.

    SCHEMATIC DIAGRAM
