Hyundai Ioniq: Interior Features / Cargo Security Screen

Hyundai Ioniq (AE) 2017-2023 Owner's Manual / Convenient features of your vehicle / Interior Features / Cargo Security Screen

Hyundai Ioniq. Cargo Security Screen

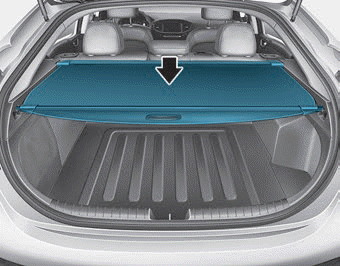

Use the cargo security screen to hide items stored in the cargo area.

To use the cargo security screen

Hyundai Ioniq. Cargo Security Screen

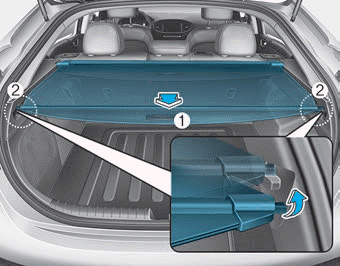

1. Pull the cargo security screen towards the rear of the vehicle by the handle (1).

2. Insert the guide pin into the guide (2).

NOTICE

Pull out the cargo security screen with the handle in the center to prevent the guide pin from falling out of the guide.

When the cargo security screen is not in use:

1. Pull the cargo security screen backward and up to release it from the guides.

2. The cargo security screen will automatically slide back in.

NOTICE

The cargo security screen may not automatically slide back in if the cargo security screen is not fully pulled out. Fully pull it out and then let go.

To remove the cargo security screen

Hyundai Ioniq. Cargo Security Screen

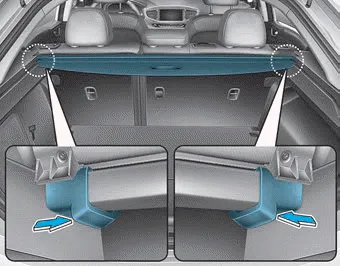

1. Push out the lower part of guide pins in both sides.

2. While pushing in one side of the guide pin, pull out the cargo security screen.

Hyundai Ioniq. Cargo Security Screen

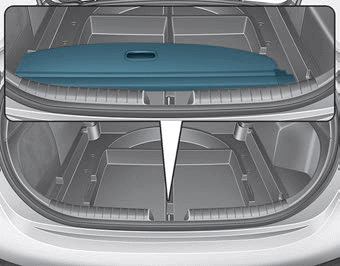

3. Open the luggage tray and keep the cargo security screen in the tray.
