Hyundai Ioniq: Crash Pad / Crash Pad Garnish. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Garnish. Components and components location

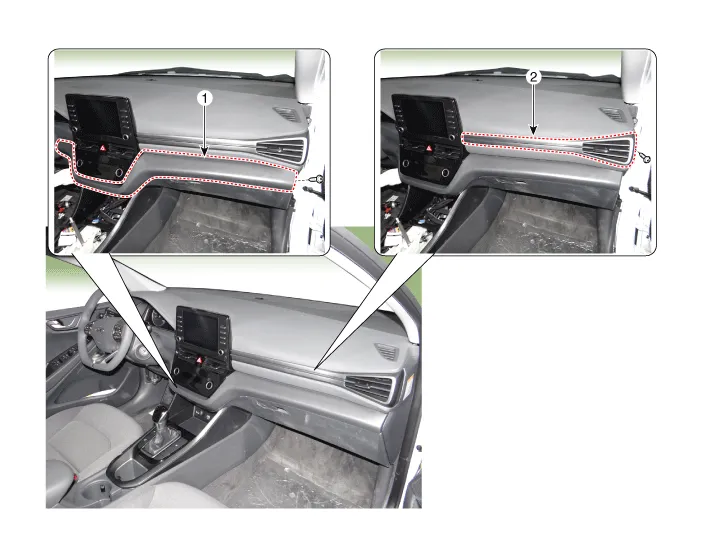

Component Location

1. Crash pad center garnish
2. Crash pad garnish [RH]
