Hyundai Ioniq: Manifold Absolute Pressure Sensor (MAPS) / Description and operation

Hyundai Ioniq (AE) 2017-2025 Service Manual / Engine Control/Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) / Description and operation

Description

Manifold Absolute Pressure Sensor (MAPS) is a speed-density type sensor and is installed on the surge tank. It senses absolute pressure of the surge tank and transfers the analog signal proportional to the pressure to the ECM. By using this signal, the ECM calculates the intake air quantity and engine speed.

The MAPS consists of a piezo-electric element and a hybrid IC amplifying the element output signal. The element is silicon diaphragm type and adapts pressure sensitive variable resistor effect of semi-conductor. Because 100% vacuum and the manifold pressure apply to both sides of the sensor respectively, this sensor can output analog signal by using the silicon variation proportional to pressure change.

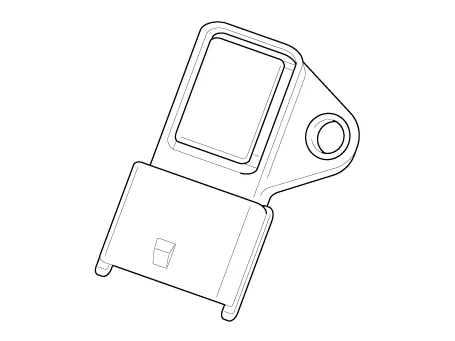

Manifold Absolute Pressure Sensor (MAPS)

Specifications

Specification Pressure [kPa (kgf/cm², psi)] Output Voltage (V) 20...
