Hyundai Ioniq (AE): Manual Heating and Air Conditioning / Driver only, Air conditioning, OFF mode
Driver only
If you press the DRIVER ONLY button(
)
and the indicator light illuminates, air mostly blows in the direction of the driver’s
seat.
However, some of the air may come out of other seating position ducts to keep indoor air pleasant.
If you use the button with no passenger in the front passenger seat, energy consumption will be reduced.
DRIVER ONLY button will be turned off under the following conditions:
1) Defrost on (the DRIVER ONLY button indicator is not turned off)
2) DRIVER ONLY button re-push
Air conditioning

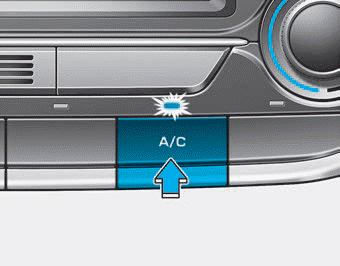

Push the A/C button to manually turn the system on (indicator light will illuminate) and off.
OFF mode

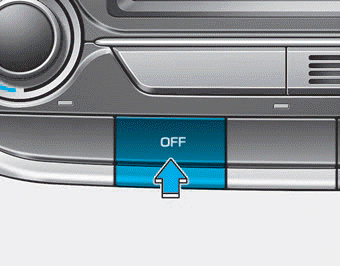

Push the OFF button to turn the climate control system off.
You can still operate the mode and air intake buttons as long as the Engine Start/ Stop button is in the ON position.
The fan speed can be set as desired by pushing the fan speed control button. More air is delivered with higher fan speeds. Pressing the OFF button turns off the fan.
Ventilation 1. Select the Face Level mode. 2. Set the air intake control to the outside (fresh) air position. 3. Set the temperature control to the desired position.
