Hyundai Ioniq: Clutch System / Engine Clutch Actuator. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Engine Clutch System / Clutch System / Engine Clutch Actuator. Components and components location

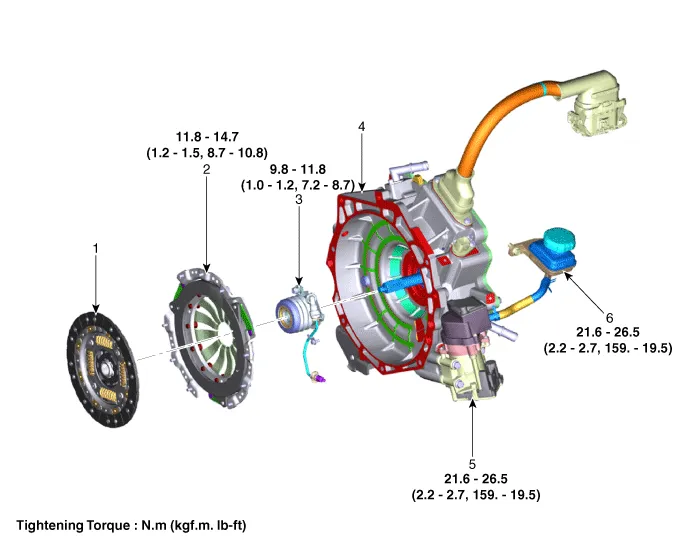

Components

1. Clutch disc
2. Clutch cover
3. Concentric slave cylinder
4. Hybrid motor assembly
5. Engine clutch actuator
6. Reservoir

    Clutch System

    ..

    Engine Clutch Actuator. Specifications
