Hyundai Ioniq: Fuses / Engine Compartment Panel Fuse Replacement

Hyundai Ioniq (AE) 2017-2024 Owner's Manual / Maintenance / Fuses / Engine Compartment Panel Fuse Replacement

Hyundai Ioniq. Engine Compartment Panel Fuse Replacement

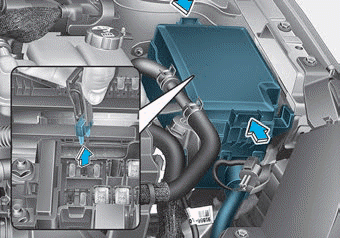

■ Blade type fuse

Hyundai Ioniq. Engine Compartment Panel Fuse Replacement

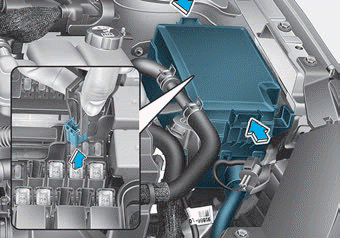

■ Cartridge type fuse

1. Turn the vehicle off.

2. Turn all other switches OFF.

3. Remove the fuse panel cover by pressing the tap and pulling up.

4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

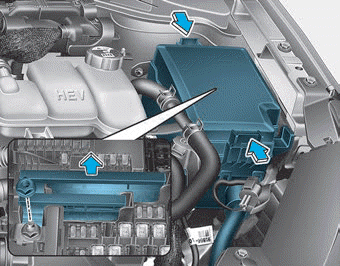

Multi fuse

Hyundai Ioniq. Engine Compartment Panel Fuse Replacement

If the multi fuse is blown, it must be removed as follows:

1. Turn the vehicle off.

2. Disconnect the negative battery cable.

3. Remove the fuse panel cover by pressing the tab and pulling it up.

4. Remove the nuts shown in the picture above.

5. Replace the fuse with a new one of the same rating.

6. Reinstall in the reverse order of removal.

CAUTION

After checking the fuse box in the engine compartment securely close the fuse box cover inside the engine compartment, until it clicks.

If the fuse box is not closed properly, water may leak in side, possibly causing a malfunction with the electrical system.

Information

If the multi fuse is blown, consult an authorized HYUNDAI dealer.
