Hyundai Ioniq: Engine and Transaxle Assembly / Engine Mounting. Components and components location

Hyundai Ioniq (AE) 2017-2024 Service Manual / Engine Mechanical System / Engine and Transaxle Assembly / Engine Mounting. Components and components location

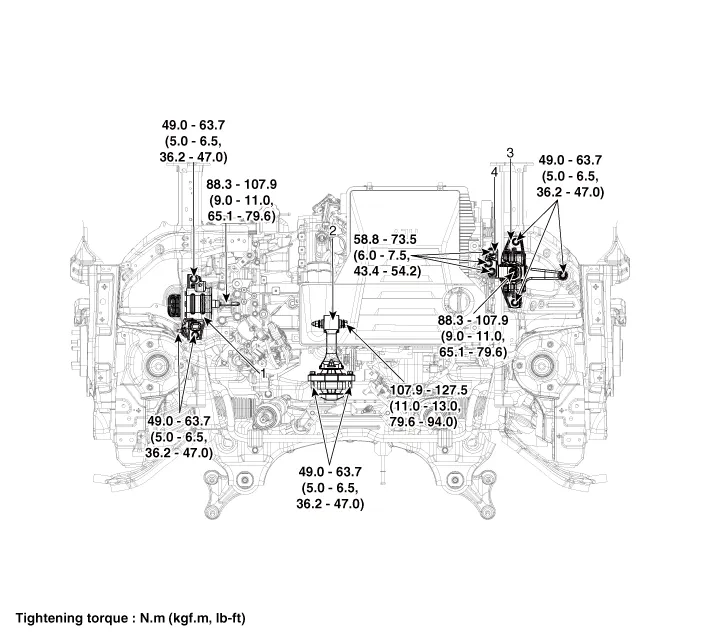

Components

1. Transaxle mounting bracket
2. Roll rod bracket
3. Engine mounting bracket
4. Engine mounting support bracket

    Engine Room Under Cover. Repair procedures

    Removal and installation1.Remove the engine room under cover (A). Tightening torque : 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)2...

    Engine Mounting. Repair procedures

    Removal and InstallationRoll Rod Bracket1.Remove the roll rod bracket (A). Tightening torque Bolt (B) :107.9 - 127.5 N.m (11.0 - 13...
