Type A – Standard type

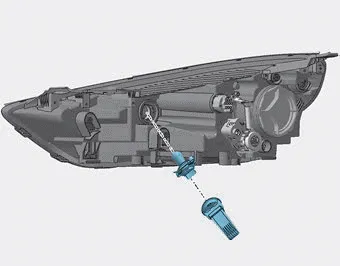

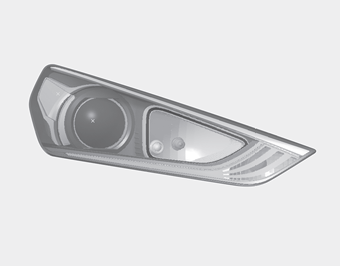

Hyundai Ioniq. Headlamp, Parking Lamp, Turn Signal Lamp and Side Marker

(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
(4) Parking lamp
(5) Side marker

WARNING

Hyundai Ioniq. Headlamp, Parking Lamp, Turn Signal Lamp and Side Marker

Halogen bulb

  • Handle halogen bulbs with care. Halogen bulbs contain pressurized gas that will produce flying pieces of glass that could cause injuries if broken.
  • Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.



  • Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids.
  • Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit.
  • A bulb should be operated only when installed in a headlamp.
  • If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.

Headlamp and parking lamp

Hyundai Ioniq. Headlamp, Parking Lamp, Turn Signal Lamp and Side Marker

1. Open the hood.
2. Disconnect the negative battery cable.

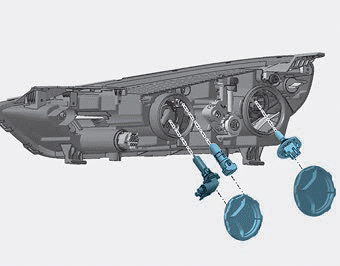

3. Remove the headlamp bulb cover (1) by turning it counterclockwise.
4. Disconnect the headlamp bulb socket-connector. (for low beam and high beam)
5. Remove the bulb from the headlamp assembly.
6. Install a new bulb.
7. Connect the headlamp bulb socket- connector. (for low beam and high beam)
8. Install the hbulb cover (1) by turning it clockwise.

Information

The headlamp aiming should be adjusted after an accident or after the headlamp assembly is reinstalled at an authorized HYUNDAI dealer.

Turn signal

Hyundai Ioniq. Headlamp, Parking Lamp, Turn Signal Lamp and Side Marker

1. Open the hood.

2. Disconnect the negative battery cable.

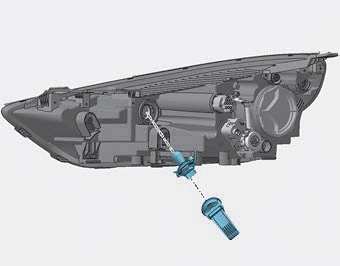

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Install a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly.

7. Push the socket into the assembly and turn the socket clockwise.

Side marker

Hyundai Ioniq. Headlamp, Parking Lamp, Turn Signal Lamp and Side Marker

1. Open the hood.

2. Disconnect the negative battery cable.

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb from the socket by pulling out the bulb.

5. Insert a new bulb.

Type B– HID headlamp type

Hyundai Ioniq. Headlamp, Parking Lamp, Turn Signal Lamp and Side Marker

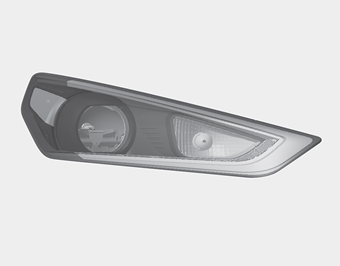

(1) Headlamp (Low/High)

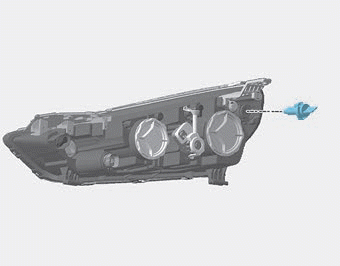

(2) Turn signal lamp
(3) Parking lamp
(4) Side marker

Headlamp

If the light bulb does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

WARNING

HID headlamp

Do not attempt to replace or inspect the headlamp (XENON bulb) due to electric shock danger. If the headlamp (XENON bulb) is not working, have your vehicle checked by an authorized HYUNDAI Dealer.

Information

If your vehicle is equipped with High Intensity Discharge (HID) headlamps, these headlamps contain mercury. So if you need to have your vehicle disposed, you should remove the HID Headlamps before disposal. The removed HID headlamps should be recycled, re-used or disposed as hazardous waste.

Information

HID lamps have superior performance vs. halogen bulbs.

HID lamps are estimated by the manufacturer to last twice as long or longer than halogen bulbs depending on their frequency of use. They will probably require replacement at some point in the life of the vehicle. Cycling the headlamps on and off more than typical use will shorten HID lamps life. HID lamps do not fail in the same manner as halogen incandescent lamps. If a headlamp goes out after a period of operation but will immediately relight when the headlamp switch is cycled it is likely the HID lamp needs to be replaced. HID lighting components are more complex than conventional halogen bulbs thus have higher replacement cost.

Information

The headlamp aiming should be adjusted after an accident or after the headlamp assembly is reinstalled at an authorized HYUNDAI dealer.

Turn signal lamp

Hyundai Ioniq. Headlamp, Parking Lamp, Turn Signal Lamp and Side Marker

1. Open the hood.

2. Disconnect the negative battery cable.

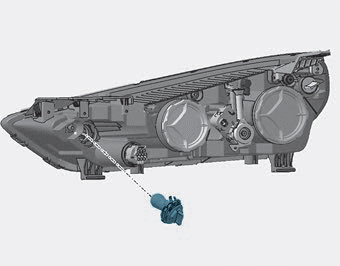

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Install a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly.

7. Push the socket into the assembly and turn the socket clockwise.

Side marker

Hyundai Ioniq. Headlamp, Parking Lamp, Turn Signal Lamp and Side Marker

1. Open the hood.

2. Disconnect the negative battery cable.

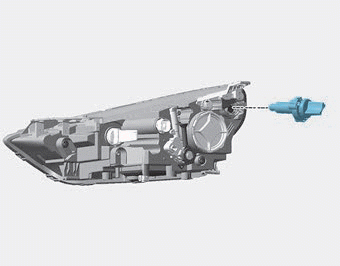

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb from the socket by pulling out the bulb.

5. Insert a new bulb.

    Light Bulbs

    Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is difficult to replace vehicle light bulbs because other parts of the vehicle must be removed before you can get to the bulb...

    Daytime Running Light (DRL)

    Your vehicle is equipped with LED lamps. LED lamps do not have replaceable bulbs. If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer...
