Hyundai Ioniq: Timing System / Timing Chain Cover. Components and components location

Hyundai Ioniq (AE) 2017-2025 Service Manual / Engine Mechanical System / Timing System / Timing Chain Cover. Components and components location

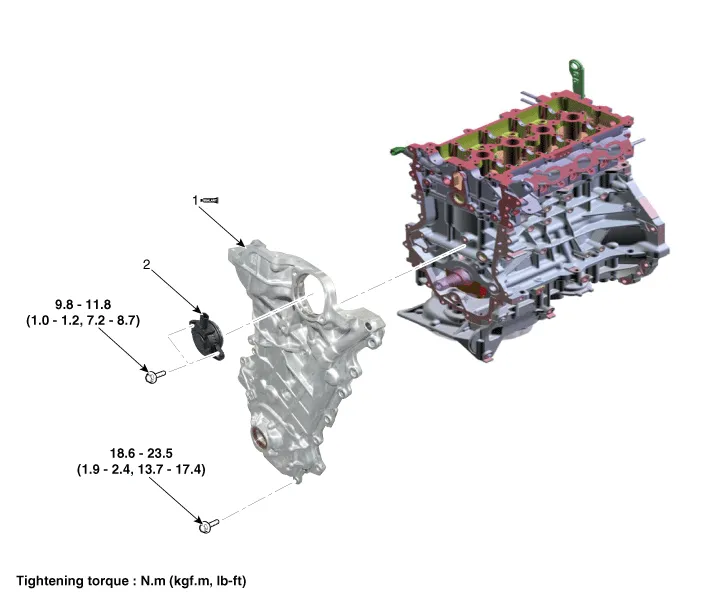

Components

1. Timing chain cover
2. Oil control solenoid (OCS)

    Front Oil Seal. Repair procedures

    Removal and Installation1.Remove the crankshaft damper pulley.(Refer to Timing System - "Crankshaft Damper Pulley")2.Remove the front oil seal (A).3.Apply engine oil to a new oil seal lip & outer surface...

    Timing Chain Cover. Repair procedures

    RemovalEngine removal is not required for this procedure.    • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system...
