Hyundai Ioniq: With Tire Mobility Kit (TMK) - Type A / Using the Tire Mobility Kit

Hyundai Ioniq (AE) 2017-2022 Owner's Manual / What to do in an emergency / If You Have a Flat Tire / With Tire Mobility Kit (TMK) - Type A / Using the Tire Mobility Kit

CAUTION

Hyundai Ioniq. Using the Tire Mobility Kit

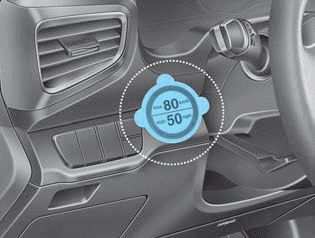

Detach the speed restriction label (1) from the sealant bottle (2), and place it in a highly visible place inside the vehicle such as on the steering wheel to remind the driver not to drive too fast.

Hyundai Ioniq. Using the Tire Mobility Kit

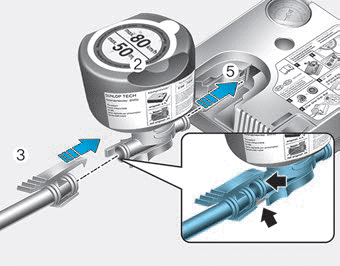

2. Screw the filling hose (3) onto the connector of the sealant bottle (2).

3. Insert the sealant bottle into the housing of the compressor (5) so that the bottle is upright.

4. Ensure that the button (9) on the compressor is not pressed.

Hyundai Ioniq. Using the Tire Mobility Kit

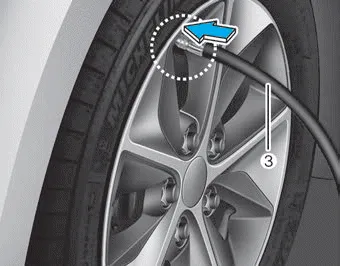

5. Unscrew the valve cap from the valve of the defective wheel and screw the filling hose (3) of the sealant bottle onto the valve.

6. Ensure that the compressor is switched OFF.

CAUTION

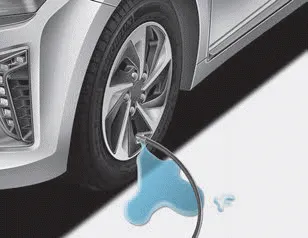

Securely install the sealant filling hose to the valve. If not, sealant may flow backward, possibly clogging the filling hose.

Hyundai Ioniq. Using the Tire Mobility Kit

Hyundai Ioniq. Using the Tire Mobility Kit

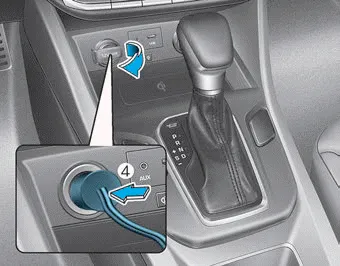

7. Plug the compressor power cord (4) into the vehicle power outlet.

8. With the vehicle ON (Hyundai Ioniq. Using the Tire Mobility Kit indicator ON), switch on the compressor and let it run for approximately 5~7 minutes to fill the sealant up to proper pressure. (refer to the Tire and Wheels, chapter 8). The inflation pressure of the tire after filling is unimportant and will be checked/corrected later.

Be careful not to overinflate the tire and stay away from the tire when filling it.

CAUTION

Do not attempt to drive your vehicle if the tire pressure is below 29 psi (200 kpa). This could result in an accident due to sudden tire failure.

9. Switch off the compressor.

10. Detach the hoses from the sealant bottle connector and from the tire valve.

Return the Tire Mobility Kit to its storage location in the vehicle.

WARNING

Do not the filling leave your vehicle running in a poorly ventilated area for extended periods of time. Carbon monoxide poisoning and suffocation can occur.

Distributing the sealant

Hyundai Ioniq. Using the Tire Mobility Kit

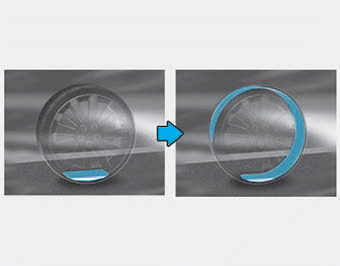

11. Immediately drive approximately 4~6 miles (7~10 km or about 10 minutes) to evenly distribute the sealant in the tire.

Do not exceed a speed of 50 mph (80 km/h). If possible, do not fall below a speed of 12 mph (20 km/h).

While driving, if you experience any unusual vibration, ride disturbance or noise, reduce your speed and drive with caution until you can safely pull off of the side of the road.

    Components of the Tire Mobility Kit

    1. Speed restriction label 2. Sealant bottle and label with speed restriction 3. Filling hose from sealant bottle to wheel 4. Connectors and cable for power outlet direct connection 5...

    Checking the tire inflation pressure

    1. After driving approximately 4~6 miles (7~10 km or about 10 minutes), stop at a safe location. 2. Connect the filling hose (3) directly into the compressor...
