Hyundai Ioniq: Maintenance / Wiper Blades

Hyundai Ioniq (AE) 2017-2022 Owner's Manual / Maintenance / Wiper Blades

Blade Inspection

Contamination of either the windshield or the wiper blades with foreign matter can reduce the effectiveness of the windshield wiper functionality. Common sources of contamination are insects, tree sap, and hot wax treatments used by some commercial car washes. If the blades are not wiping properly, clean both the window and the blades with a clean cloth dampened with washer fluid.

NOTICE

To prevent damage to the wiper blades, arms or other components, do not:

  • Use gasoline, kerosene, paint thinner, or other solvents on or near them.
  • Attempt to move the wipers manually.
  • Use non-specified wiper blades.

Information

Commercial hot waxes applied by automatic car washes have been known to make the windshield difficult to clean.

Blade Replacement

When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.

NOTICE

To prevent damage to the wiper arms or other components, do not attempt to move the wipers manually.

NOTICE

The use of a non-specified wiper blade could result in wiper malfunction and failure.

Type A

Hyundai Ioniq. Wiper Blades

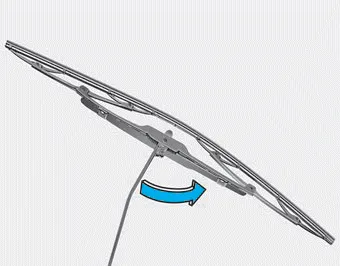

1. Raise the wiper arm and slightly rotate the wiper blade assembly to expose the plastic locking clip.

NOTICE

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

Hyundai Ioniq. Wiper Blades

Hyundai Ioniq. Wiper Blades

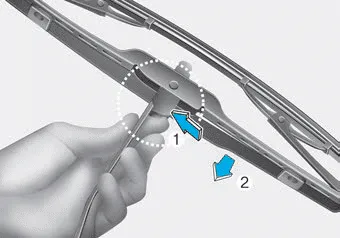

2. Press the clip (1) and slide the blade assembly downward (2).

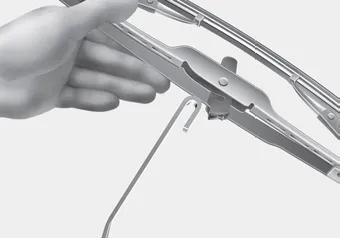

3. Lift it off the arm.

4. Install the blade assembly in the reverse order of removal.

5. Return the wiper arm on the windshield.

Type B

Hyundai Ioniq. Wiper Blades

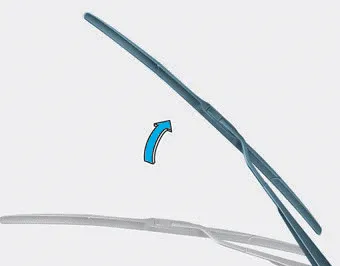

1. Raise the wiper arm.

Hyundai Ioniq. Wiper Blades

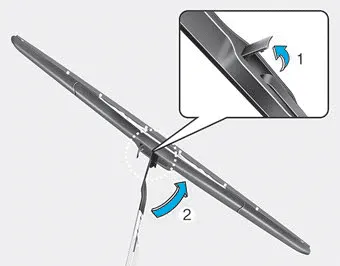

2. Lift up the wiper blade clip (1). Then lift up the wiper blade (2).

Hyundai Ioniq. Wiper Blades

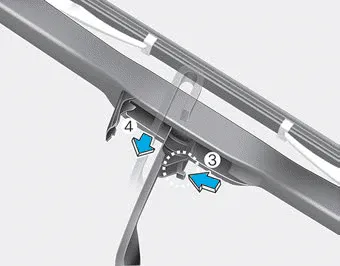

3. While pushing the lock (3), pull down the wiper blade (4).

Hyundai Ioniq. Wiper Blades

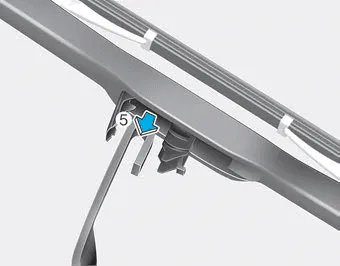

4. Remove the wiper blade from the wiper arm (5).

5. Install a new wiper blade assembly in the reverse order of removal.

6. Return the wiper arm on the windshield.
