Hyundai Ioniq (AE): High Voltage Battery Control System / Battery Current Sensor. Description and operation

Description

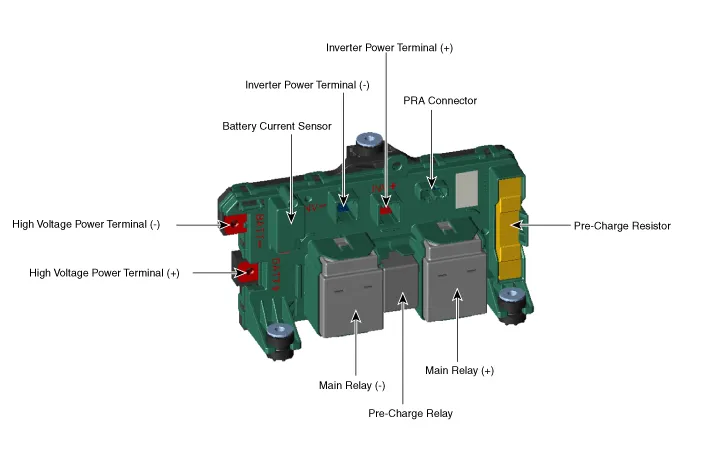

Battery Current Sensor is integrated into the Power Relay Assembly (PRA) and measures the current of the high voltage battery during charging or discharging.

    Removal1.Shut off the high voltage.(Refer to Hybrid Control System - "High Voltage Shut-off Procedures")2.Remove the rear seat cushion.(Refer to Body - "Rear Seat Assembly")3.

    Specification Current (A) Output Voltage (V) -300 (Charge)0.502.5+300 (Discharge)4.5
