Hyundai Ioniq (AE): AHB(Active Hydraulic Boost) System / Brake Actuation Unit. Components and components location
| Components |
|

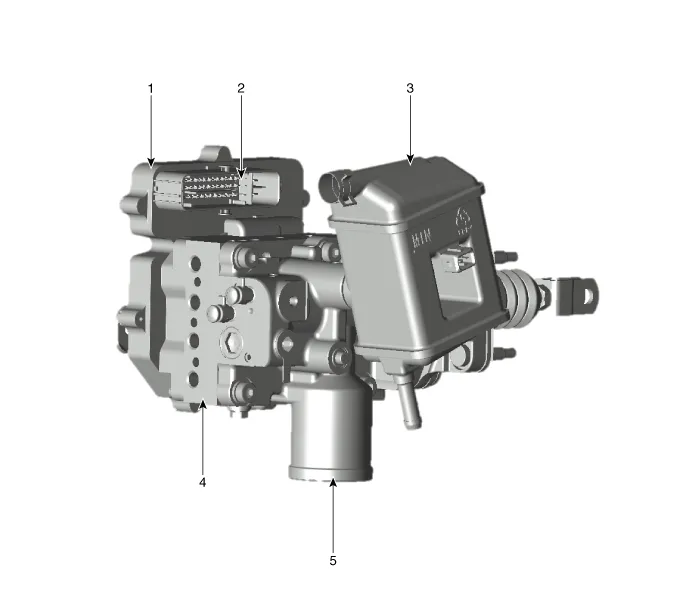

| 1. Intergrated Brake Actuation Unit (IBAU) ECU 2. Intergrated Brake Actuation Unit (IBAU) connector 3. Reservoir | 4. Intergrated Brake Actuation Unit (IBAU) 5. Pedal simulator |
AHB Brake System Bleeding ProcedureAir Bleeding Tool Installation Procedure • To prevent the brake fluid reservoir tank from beingdamaged and ensure the safety of worker, set thepressure of the gauge to the standard value beforeinstalling the SST.
Removal 1.Turn ignition switch OFF and disconnect the negative (-) battery cable.2.Disconnector TCM connector (A).3.Disconnector TCM connector (B).4.Loosen the bolt & nut (A) then remove the ECM, TCM with bracket (B).
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Auto Defoging Actuator. Description and operation
DescriptionThe auto defogging sensor is installed on front window glass. The sensor judges and sends signal if moisture occurs to blow out wind for defogging. The air conditioner control module receives a signal from the sensor and restrains moisture and eliminates defog by the intake actuator, A/C, auto defogging actuator, blower motor rpm and mod
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Parking Distance Warning (PDW) Sensor. Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the front / rear bumper cover.(Refer to Body - "Front Bumper Cover")(Refer to Body - "Rear Bumper Cover")3.Disconnect the connector (A) from the parking assist sensor.4.Remove the sensor (A) by pulling out both ends of the sensor holder.
