Hyundai Ioniq (AE): Rear Door / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Components and components location

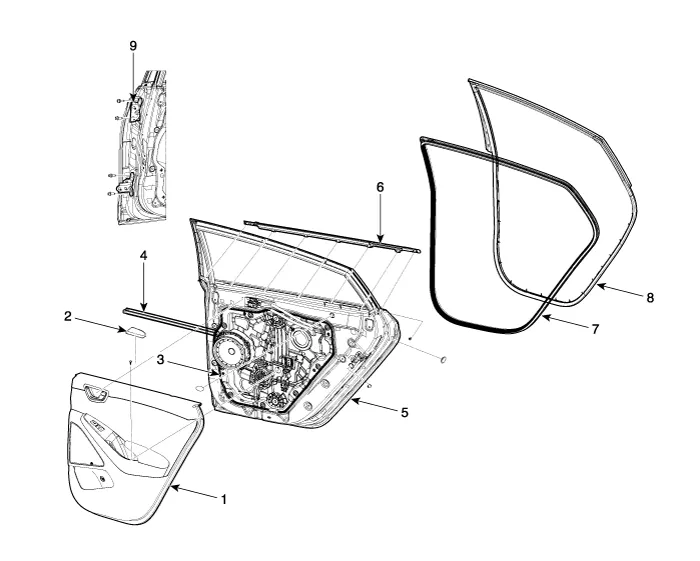

Components

1. Rear door trim
2. Rear door pull cap
3. Rear door module
4. Rear door belt inside weatherstrip
5. Rear door panel
6. Rear door belt outside weatherstrip
7. Rear door body side weatherstrip
8. Rear door side weatherstrip assembly
9. Rear door hinge


    AdjustmentGlass Adjustment    â€¢ Check the glass run channel for damage or deterioration, and replace them if necessary.
