Hyundai Ioniq (AE): Clutch Actuator Assembly / Components and components location

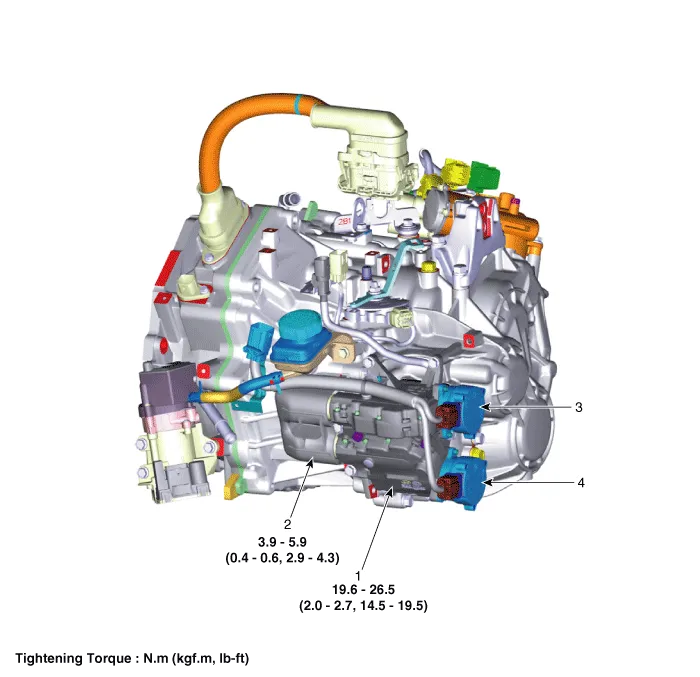

Components

1. Clutch Actuator Assembly
2. Fork Cover
3. Clutch Actuator Motor (Odd)
4. Clutch Actuator MOtor (Even)

    Specification Item Condition Specifications Resistance (line to line)Motor 157 mΩ ±10 %Motor 257 mΩ ± 10 %Rated voltage12 VMax.

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Ambient Temperature Sensor. Repair procedures

    Inspection1.Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature.1. Ambient Sensor (+)2. Sensor groundSpecification Ambient temperature [°C (°F)] Resistance between terminal 1 and 2 (

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Auto Defoging Actuator. Repair procedures

    Inspection1.Turn the ignition switch OFF. 2.Disconnect the auto defogging connector. 3.Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
