Hyundai Ioniq (AE): Crash Pad / Cowl Cross Bar Assembly. Components and components location
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Crash Pad / Cowl Cross Bar Assembly. Components and components location

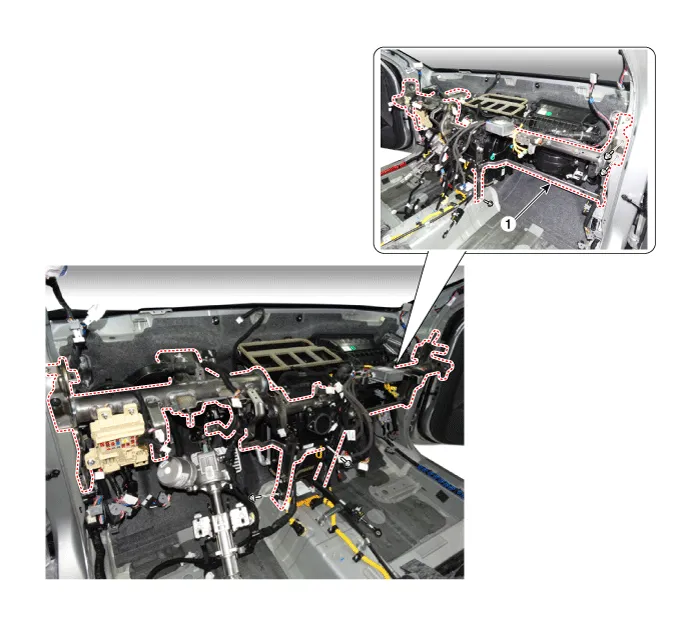

| Component Location |
| 1. Cowl cross bar assembly |
Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
