Hyundai Ioniq (AE): Cylinder Block / Crankshaft. Components and components location

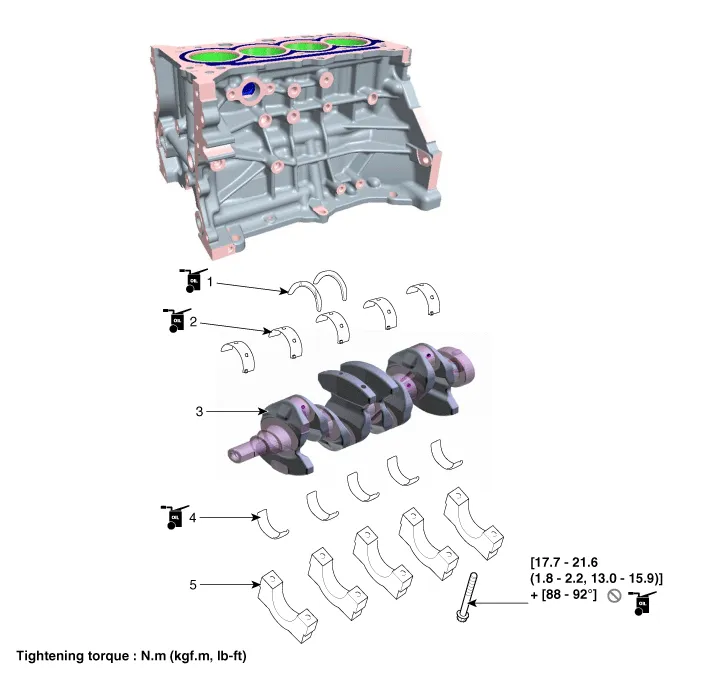

Components

1. Thrust bearing
2. Main bearing (Upper)
3. Crankshaft
4. Main bearing (Lower)
5. Main bearing cap

    Disassembly    â€¢ Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.

    Disassembly    â€¢ Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
