Hyundai Ioniq (AE): Cylinder Head Assembly / Cylinder Head. Components and components location

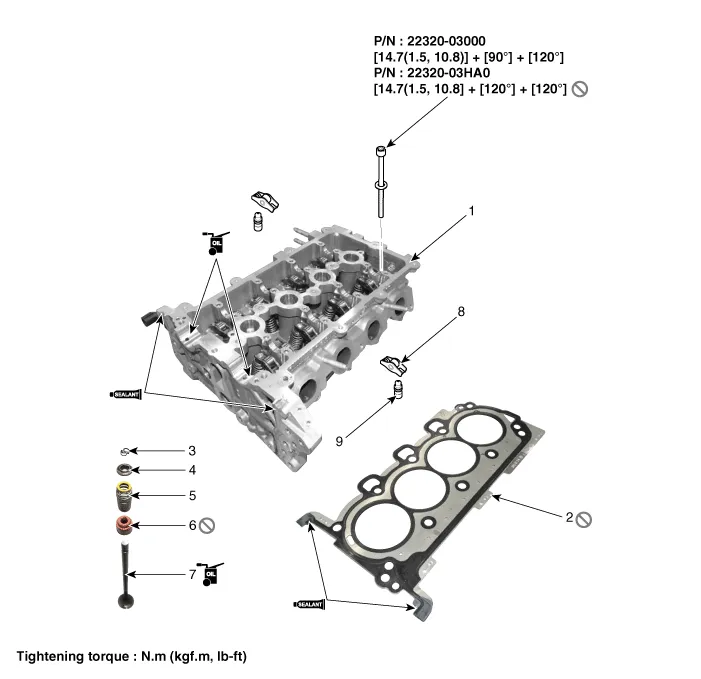

| Components |
| 1. Cylinder head assembly 2. Cylinder head gasket 3. Retainer lock 4. Retainer 5. Valve spring | 6. Valve stem seal 7. Valve 8. Swing arm 9. Hydraulic lash adjuster (HLA) |
Removal • Be sure to read and follow the “General Safety Information and Caution” before doing any work related with the high voltage system.
RemovalEngine removal is not required for this procedure. • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: emperature Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the temperature control actuator connector.3.Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.Verify that the temperature control actuator operates to the warm position when connected in reverse.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Troubleshooting
Trouble Symptom ChartsTrouble Symptom 1Trouble Symptom 2 Trouble symptom Probable cause Remedy The set vehicle speed varies greatly upward or downward"Surging" (repeated alternating acceleration and deceleration) occurs after settingMalfunction of the vehicle speed se
