Hyundai Ioniq (AE): Emergency Call System / Emergency Call (eCall) Speaker. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Emergency Call System / Emergency Call (eCall) Speaker. Repair procedures

REMOVAL

1.	Disconnect the negative (-) battery terminal.

2.	Remove the glove box upper cover assembly. (Refer to Body - "Glove Box Upper Cover Assembly")

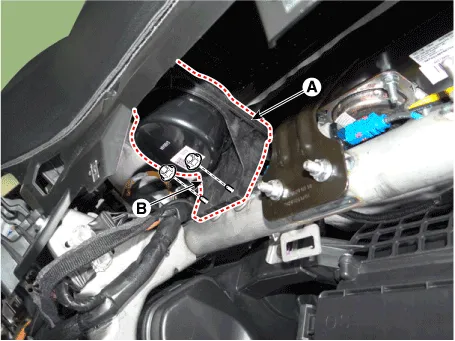

3.	Remove the E-call speaker (A) by loosening the nuts after disconnecting the connector (B).

Installation

1.	Install the speaker and connect the eCall unit connector.

2.	Install the glove box upper cover assembly.

3.	Connect the negative (-) battery terminal.
