Hyundai Ioniq (AE): Intake and Exhaust System / Exhaust Manifold. Components and components location

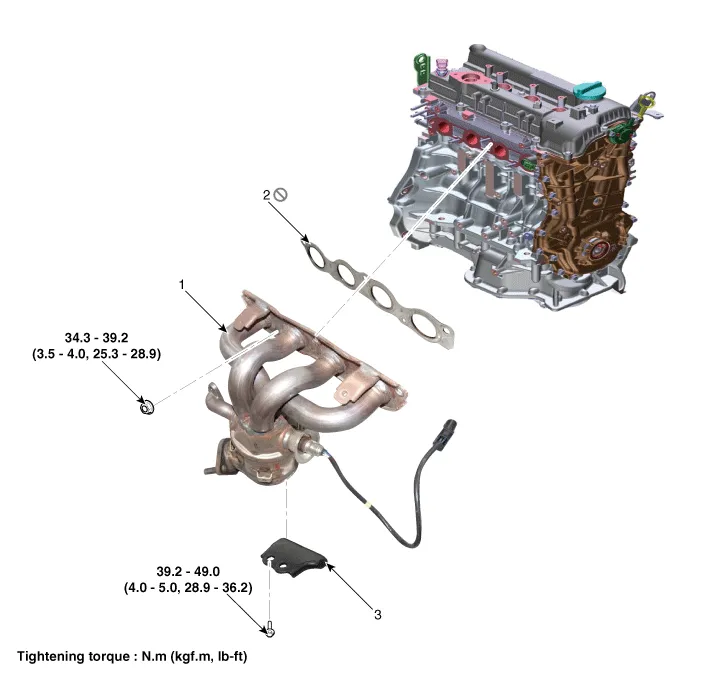

Components

1. Exhaust manifold assembly
2. Exhaust manifold gasket
3. Exhaust manifold stay

    Removal and Installation1.Disconnect the battery negative terminal.2.Remove the air cleaner assembly.(Refer to Intake and Exhaust System - "Air Cleaner")3.

    Removal and Installation1.Disconnect the battery negative terminal.2.Remove the air cleaner assembly.(Refer to Intake and Exhaust System - "Air Cleaner")3.
