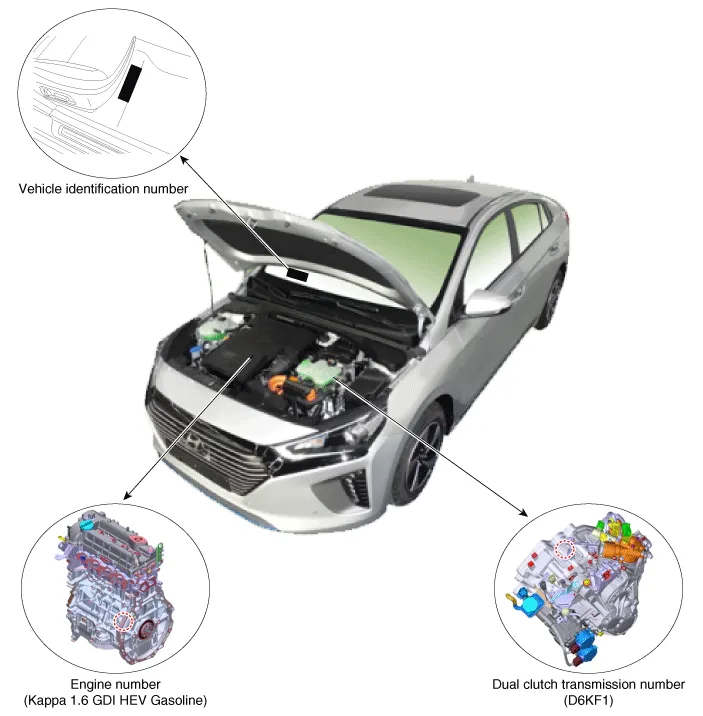

Identification Numbers

Identification Number Description
Vehicle Identification Number

1.
World Manufacturer Identifier (WMI)
- KMH : Passenger vehicle, MPV(Multipurpose Passenger Vehicle)/SUV(Sports Utility Vehicle)/RV(Recreational Vehicle)
- KMF : Commercial vehicle (Van)
- KM8 : MPV/SUV/RV (For U.S.A, Canada, Mexico)
- KMJ : Van
2.
Vehicle line
- C : IONIQ
3.
Model & Series
- 6 : Low grade (L)
- 7 : Middle-Low grade (GL)
- 8 : Middle grade (GLS, JLS, TAX)
- 9 : Middle-High grade (HGS)
- 0 : High grade (TOP)
4.
Body/Cabin type, Gross Vehicle Weight Rating
[KMH]
- 1 : Limousine
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
- H : Fast back - 5 door
[KMF (Commercial vehicle / Van)]
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- X : Standard Cabin / Semi-Bonnet
- Y : Double Cabin / Bonnet
- Z : Super Cabin / Box
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- 3 : Standard Cabin Class-E 4×2 / Semi-Bonnet Class-E 4×2
- 4 : Standard Cabin Class-E 4×4 / Semi-Bonnet Class-E 4×4
- 5 : Standard Cabin Class-F 4×2 / Semi-Bonnet Class-F 4×2
- 6 : Standard Cabin Class-F 4×4 / Semi-Bonnet Class-F 4×4
- 7 : Double Cabin Class-E 4×2 / Bonnet Class-E 4×2
- 8 : Double Cabin Class-E 4×4 / Bonnet Class-E 4×4
- 9 : Double Cabin Class-F 4×2 / Bonnet Class-F 4×2
- 0 : Double Cabin Class-F 4×4 / Bonnet Class-F 4×4
- A : Super Cabin Class-E 4×2 / Box Class-E 4×2
- B : Super Cabin Class-E 4×4 / Box Class-E 4×4
- C : Super Cabin Class-F 4×2 / Box Class-F 4×2
- D : Super Cabin Class-F 4×4 / Box Class-F 4×4
[KM8]
- 1 : Wagon 4×2 Class-A
- 2 : Wagon 4×2 Class-B
- 3 : Wagon 4×2 Class-C
- 4 : Wagon 4×2 Class-D
- 5 : Wagon 4×2 Class-E
- 6 : Wagon 4×2 Class-F
- 7 : Wagon 4×2 Class-G
- A : Wagon 4×4 Class-A
- B : Wagon 4×4 Class-B
- C : Wagon 4×4 Class-C
- D : Wagon 4×4 Class-D
- E : Wagon 4×4 Class-E
- F : Wagon 4×4 Class-F
- G : Wagon 4×4 Class-G
[KMJ]
- 1 : Box
- 2 : Bonnet
- 3 : Semi-Bonnet
5.
Restraint system, Brake system
[KMH, KM8]
Except U.S.A, Canada, Mexico
- 0 : Both side - None
- 1 : Both side - Active belt
- 2 : Both side - Passive belt
For U.S.A, Canada, Mexico
Code
Seat belt
Front air bag
Knee air bag
Side air bag
Curtain air bag
Driver's
Passenger's
Driver's
Passenger's
1st row
2nd row
3rd row
1st row
2nd row
3rd row
A
°
°
°
×
×
°
×
×
°
°
×
B
°
°
°
×
×
×
×
×
×
×
×
C
°
°
°
×
×
°
×
×
°
°
°
D
°
°
°
×
×
°
°
×
°
°
×
E
°
°
×
×
×
×
×
×
×
×
×
F
°
°
°
×
×
°
×
×
×
×
×
N
°
×
×
×
×
×
×
×
×
×
×
H
°
°
°
°
×
°
×
×
°
°
°

[KMJ]
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
- X : Hydraulic brake system
- Y : Pneumatic brake system
- Z : Mixed brake system
[KMF]
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
6.
Engine type
- C : Gasoline engine 1.6 (Kappa 1.6 GDI + HEV)
7.
Check digit or Driver’s side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- A : LHD & MT
- B : LHD & AT
- C : LHD & MT+Transfer
- D : LHD & AT+Transfer
- E : LHD & CVT
- F : LHD & Reduction Gear
- G : LHD & DCT
- H : LHD & DCT+Transfer
- L : RHD & MT
- M : RHD & AT
- N : RHD & MT+Transfer
- S : RHD & AT+Transfer
- T : RHD & CVT
- U : RHD & Reduction Gear
- V : RHD & DCT
- W : RHD & DCT+Transfer
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- Check digit : 0 - 9, ×
8.
Production year
- G : 2016, H : 2017, J : 2018, K : 2019...
9.
Plant of production
- A : Asan (Korea)
- C : Cheonju (Korea)
- U : Ulsan (Korea)
10.
Vehicle production sequence number
- 000001 - 999999
Engine Number

1.
Engine fuel
- G : Gasoline
2.
Engine range
- 4 : 4 cycle 4 cylinder
3.
Engine development order and capacity
- L : Kappa engine (Gasoline)
4.
Engine Capacity
- E : 1580cc (HEV)
5.
Production year
- G : 2016, H : 2017, J : 2018, K : 2019...
6.
Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
7.
Engine production sequence number
- 000001 - 999999

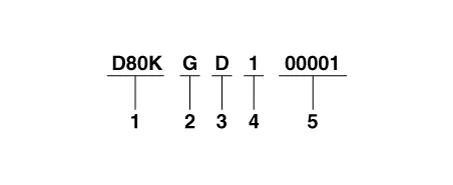

Double Clutch Transmission Number (D6KF1)

1.
Model
– D80K : D6KF1
2.
Production year
- G : 2016, H : 2017, J : 2018, K : 2019...
3.
Plant of production-
D : Hyundai Dymos
4.
Month of production
- 1 - 9 : 1 - 9 month
- A - C : 10 - 12 month
5.
Transmission production sequence number
- 00001 - 99999
Paint Code
Code
Color
NKA
Phantom Black
N4B
Marina Blue
T8S
Platinum Silver
WAW
Pola White
YT3
Iron Gray
RY9
Phoenix Orange
TS7
Aurora Silver
RN8
Choccy Brown
YU9
Mist Meadow
