Hyundai Ioniq (AE): Lighting System / Head Lamps. Components and components location

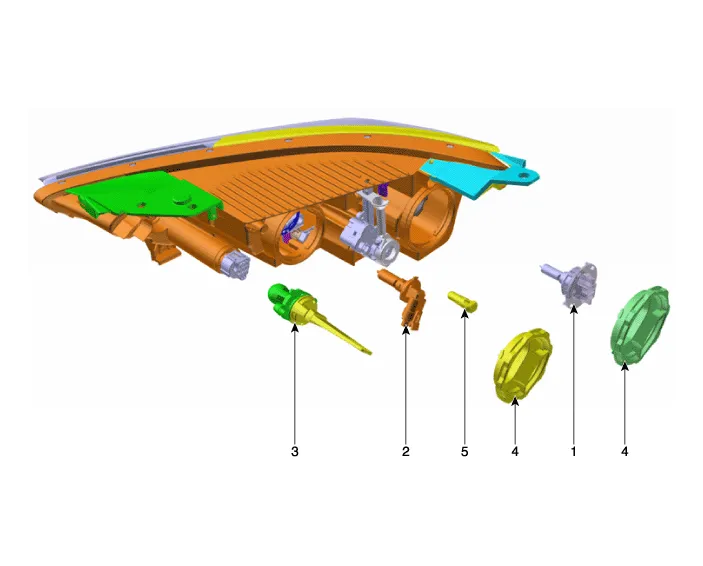

| Components |
| 1. Head lamp (Low) 2. Head lamp (High) 3. Turn signal lamp | 4. Dust cap 5. Position lamp |
Component Location1. Head lamp (Low)2. Head lamp (High)3. Position lamp4. Turn signal lamp5. Daytime Running Light (DRL)6.Turn signal lamp (Door mirror)7.
Head Lamp Aiming Instructions[Mechanical Aiming]The head lamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: PTC Heater. Description and operation
DescriptionThe PTC (Positive Temperature Coefficient) heater is installed at the exit or the backside of the heater core.The PTC heater is an electric heater using a PTC element as an auxiliary heating device that supplements deficiency of interior heat source in highly effective hybrid engine.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Evaporator Core. Repair procedures
Replacement1.Disconnect the negative (-) battery terminal. 2.Remove the heater and blower assembly.(Refer to Heater - "Heater Unit") 3.Remove the evaporator core cover (A) after loosening the mounting screws.4.Pull out the evaporator temperature sensor (A) from the evaporator core.
