Hyundai Ioniq (AE): Lighting System / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Lighting System / Components and components location

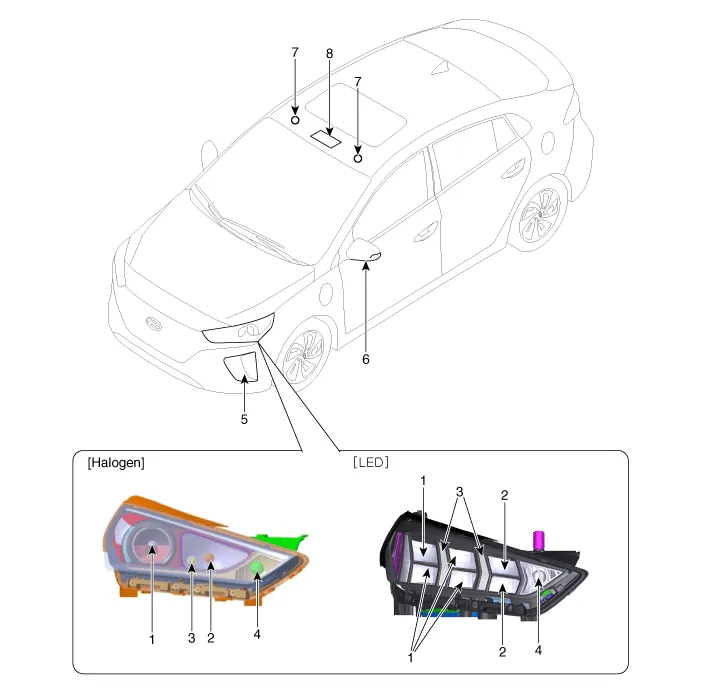

Component Location

1. Head lamp (Low)
2. Head lamp (High)
3. Position lamp
4. Turn signal lamp
5. Daytime Running Light (DRL)
6.Turn signal lamp (Door mirror)
7. Vanity lamp
8. Map lamp

1. Tail lamp
2. Tail lamp/Stop lamp
3. Back up lamp
4. Turn signal lamp
5. Stop lamp
6. High mounted stop lamp
7. Lisence lamp
8. Room lamp

    Specification Item Type Bulb Watt (W) FrontHead lampHalogenLow beam / High beamH7LL / 9005L+60 / 55Turn signal lamp / Position lampPY21W/W5W21 / 5LEDLow beam / High beamLEDLEDTurn signal lampPY 21W21Position lampLEDLEDDaytime Running Light (DRL) LEDLEDDoor mirror turn signal lamp LEDLEDRearRear combinationBulb TypeTail lamp5W 5Turn signal lampP21/5W21 / 5Back up lampW 16W16Turn signal lampPY 21W21LED TypeStop / Tail lampLEDLEDBack up lampW 16W16Turn signal lampPY21W21High mouted stop lampLEDLEDLicense plate lamp W5W5InteriorMap lamp W1010Room lamp FESTOON8Luggage lamp FESTOON5Vanity lamp FESTOON5

    Components[Standard]1. Head lamp (Low)2. Head lamp (High)3. Turn signal lamp4. Dust cap5. Position lamp
