Replacement

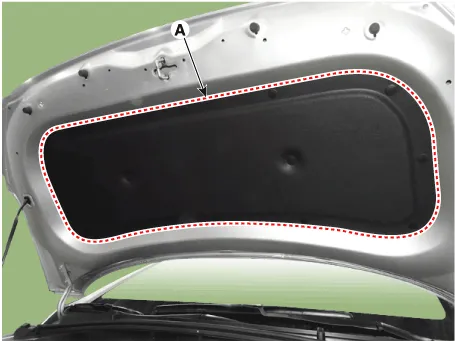

Using a clip remover, remove the clips and then the hood insulator pad (A).

•	Be careful not to scratch the hood panel.

To install, reverse the removal procedure.

•	Replace any damaged clips (or pin-type retainers).
