Hyundai Ioniq (AE): AHB(Active Hydraulic Boost) System / Hydraulic Power Unit. Components and components location
| Components |
|

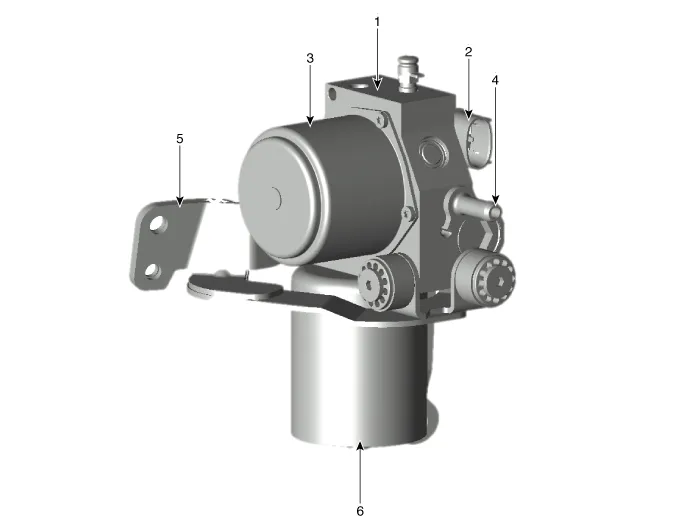

| 1. Pressure Source Unit (PSU) 2. Pressure Source Unit (PSU) connector 3. Motor | 4. Filler adapter 5. Bracket 6. Accumulator |
Removal 1.Turn ignition switch OFF and disconnect the negative (-) battery cable.2.Disconnector TCM connector (A).3.Disconnector TCM connector (B).4.Loosen the bolt & nut (A) then remove the ECM, TCM with bracket (B).
Removal1.Turn ignition switch OFF and disconnect the negative (-) battery cable.2.Remove the wiring bracket.3.Remove the brake fluid from the reservoir with a syringe.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: emperature Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the temperature control actuator connector.3.Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.Verify that the temperature control actuator operates to the warm position when connected in reverse.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Front View Camera Unit. Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the front view camera cover (A).3.Disconnect the front view camera connector (A).4.Remove the front view camera after disengaging the mounting bracket (A).Installation1.Align front view camera with windshield bracket using forward edge point (A).
