Hyundai Ioniq (AE): Engine Control System / Intake Air Temperature Sensor (IATS). Schematic diagrams

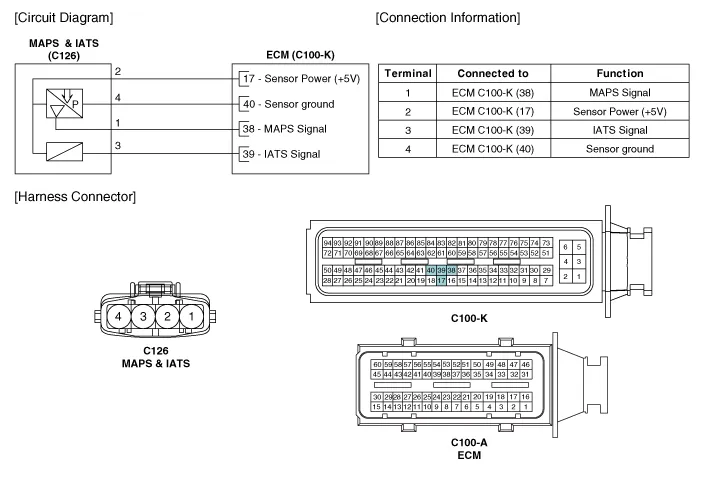

| Circuit Diagram |
Specification Temperature Resistance (kΩ) °C °F -40-4040.
Inspection1.Turn the ignition switch OFF.2.Disconnect the IATS connector.3.Measure resistance between the IATS terminals 3 and 4.4.Check that the resistance is within the specification.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Rear Corner Radar Unit. Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the rear bumper.(Refer to Body - "Rear Bumper")3.Remove the rear corner radar unit (A) after loosening the mounting nuts. • Take care not to separate the bracket from rear bumper when removing the rear corner radar sensor.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Parking Distance Warning (PDW) Sensor. Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the front / rear bumper cover.(Refer to Body - "Front Bumper Cover")(Refer to Body - "Rear Bumper Cover")3.Disconnect the connector (A) from the parking assist sensor.4.Remove the sensor (A) by pulling out both ends of the sensor holder.
