Hyundai Ioniq (AE): Engine Control System / Intake Air Temperature Sensor (IATS). Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Control/Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS). Repair procedures

Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the IATS connector.
3.
Measure resistance between the IATS terminals 3 and 4.
4.
Check that the resistance is within the specification.
Specification : Refer to "Specification"
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the air cleaner assembly
(Refer to Engine Mechanical System - "Air Cleaner")
3.

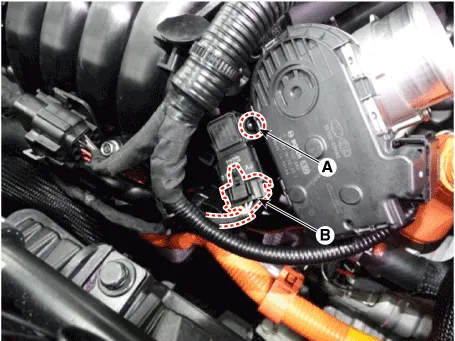

Disconnect the manifold absolute pressure sensor connector (A).
4.
Remove the installation bolt (B), and then remove the sensor from the surge tank.

Installation

•
Install the component with the specified torques.
•
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.

•
Insert the sensor in the installation hole and be careful not to damage.
1.
Install in the reverse order of removal.
Manifold absolute pressure sensor installation bolt :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    Circuit Diagram
