Hyundai Ioniq (AE): Lighting System / License Lamps. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Lighting System / License Lamps. Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

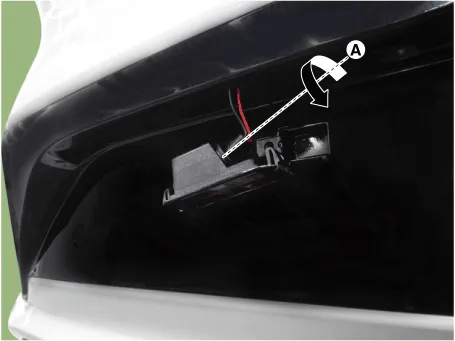

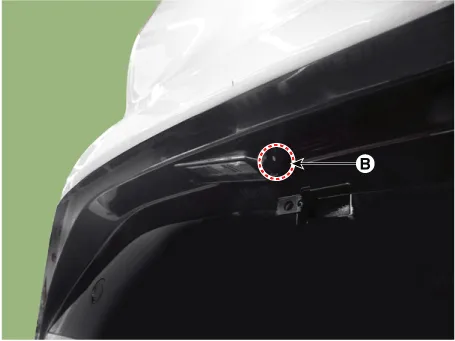

2.	Remove the license lamp (A) after disengaging the license lamp mounting clip (B).

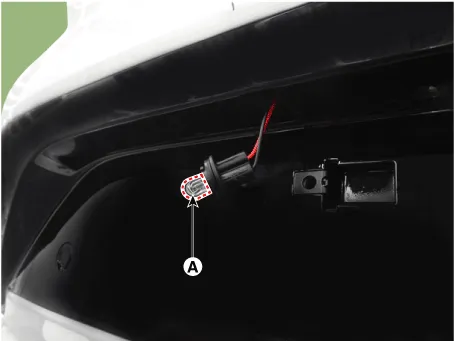

3.	Replace the bulb (A) after removing a lens.

Installation

1.	Install the license lamp assembly.

2.	Connect the negative (-) battery terminal.
