Hyundai Ioniq (AE): High Voltage Battery Control System / Main Fuse. Schematic diagrams

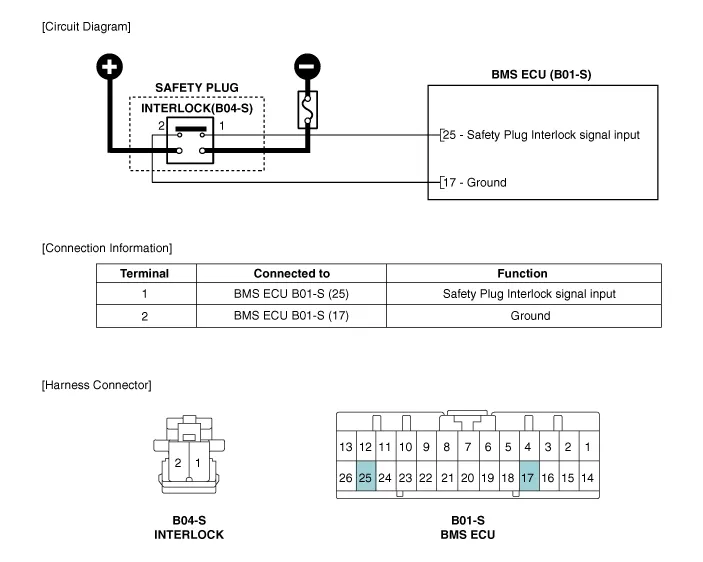

| Circuit Diagram |
Specification Item Value Rated voltage (V)400 (DC)Rated current (A)125 (DC)
Removal • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
