Description

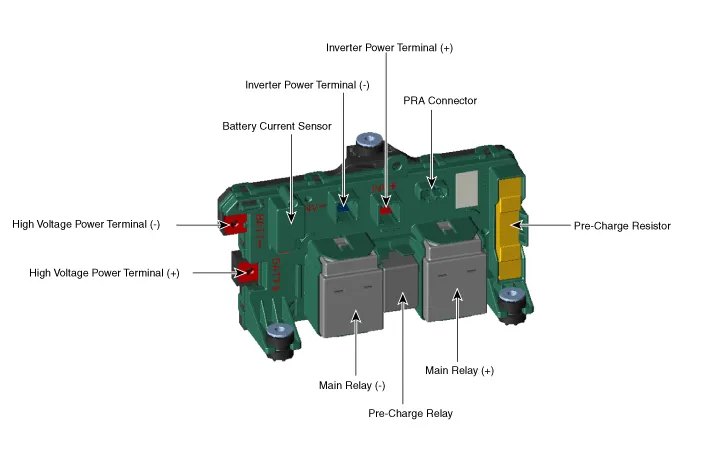

The Power Relay Assembly (PRA) consists of the positive and negative main relays, pre-charge relay, pre-charge resistor and battery current sensor. It is located inside the battery pack assembly and controls the high voltage power circuit between the high voltage battery and inverter by the control signal of BMS ECU.

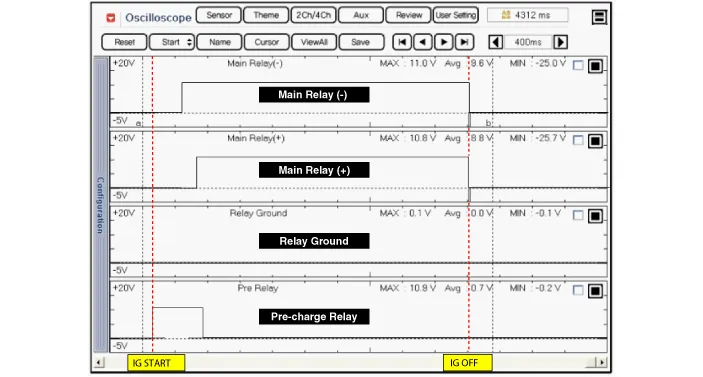

[PRA Operation Sequence]

    Removal1.Turn the ignition switch OFF and disconnect the auxiliary 12V battery negative (-) terminal.2.Remove the safety plug cover (A).3.Unfasten the hook (A) and then remove the safety plug (C) by pulling the lever (B) to the direction of arrow.

    Specification Item Specification ContactRated Voltage (V)450Rated Current (A)80CoilOperating Voltage (V)12Resistance (Ω)20.
