Hyundai Ioniq (AE): Lubrication System / Oil Pump. Components and components location
| Components |

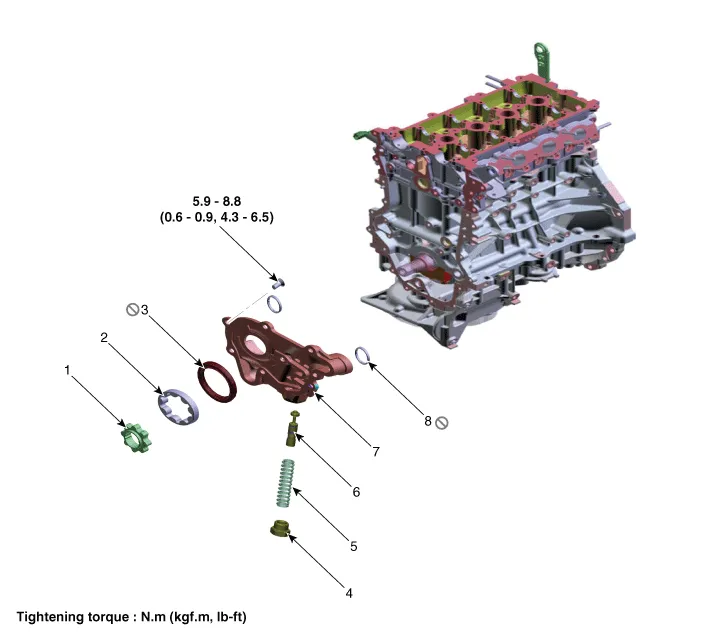

| 1. Inner rotor 2. Outer rotor 3. Oil seal 4. Plug | 5. Relief spring 6. Relief plunger 7. Oil pump cover 8. O-ring |
Engine Oil and Filter Replacement • Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis.
Removal and installation1.Remove the timing chain cover.(Refer to Timing System - "Timing Chain Cover")2.Remove the oil pump cover (A). Tightening torque : Screws :5.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Blower Unit. Components and components location
Component Location1. Blower unit assembly Components1. Duct Seal2. Intake duct case3. Air intake door assembly4. Intake door5. Seal6. Intake duct case (A)7. Air filter cover (A)8. Intake actuator9. Air filter cover10. Air filter 11. Blower unit pad12.
