Hyundai Ioniq (AE): Airbag Module / Passenger Airbag (PAB) Module. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Restraint / Airbag Module / Passenger Airbag (PAB) Module. Repair procedures

Removal
1.
Disconnect the battery negative cable and wait for at least three minutes before beginning work.
2.
Remove the glove box housing.
(Refer to Body - "Glove Box Upper Cover Assembly")
3.
Remove the passenger airbag mounting bolts.

4.

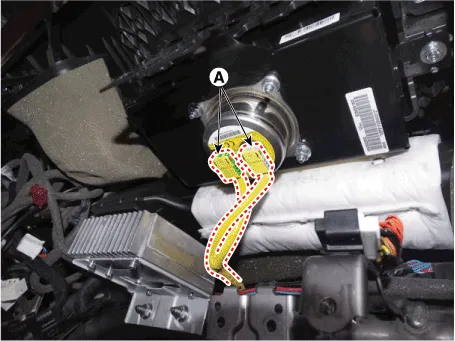

Disconnect the passenger airbag connector (A).

5.
Remove the crash pad.
(Refer to Body - "Main Crash Pad Assembly")

•
Replace the crash pad which that has been damaged after the PAB has been deployed.
6.

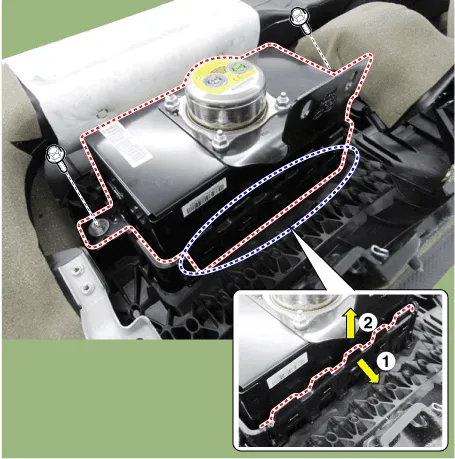

Remove the passenger airbag (A) from the crash pad after loosening the mounting bolts.


•
The removed airbag module should be stored in a clean, dry place with the airbag cushion up.
Installation
1.
Remove the ignition key from the vehicle.
2.
Disconnect the battery negative cable from battery and wait for at least three minutes before beginning work.
3.

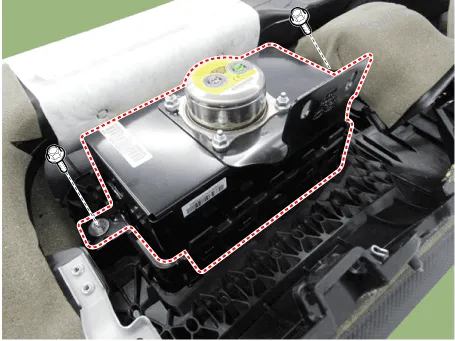

Place the passenger airbag on the crash pad and tighten the passenger airbag mounting bolts.
Tightening torque :
4.0 - 6.0 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 lb-ft)

4.
Install the crash pad.
(Refer to Body - "Main Crash Pad Assembly")
5.
Connect the passenger airbag harness connector to the SRS main harness connector (A).

6.
Tighten the passenger airbag crash pad mounting bolts.
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

7.
Install the glove box.
(Refer to Body - "Crash Pad Center Panel")
8.
Connect the battery negative cable.
9.
After installing the passenger airbag (PAB), confirm proper system operation :
•
Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.

    Components 1. Passenger Air Bag (PAB)
