Hyundai Ioniq (AE): Cylinder Block / Piston and Connecting Rod. Components and components location
| Components |

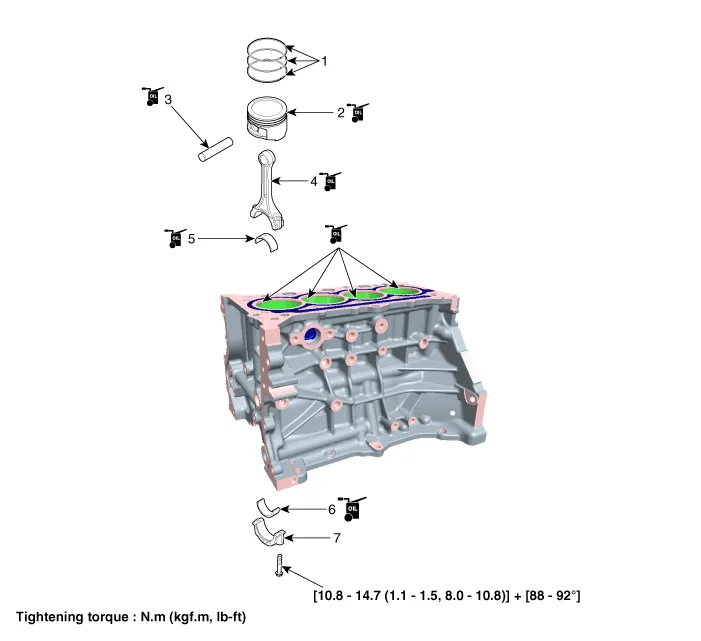

| 1. Piston ring 2. Piston 3. Piston pin 4. Connecting rod | 5. Connecting rod upper bearing 6. Connecting rod lower bearing 7. Connecting rod bearing cap |
Removal • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
Disassembly • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Photo Sensor. Description and operation
Description The photo sensor is located at the center of the defrost nozzles.The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic temperature control
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Intake Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the intake actuator connector.3.Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4.Verify that the intake actuator operates to the recirculation position when connected in reverse.
