Hyundai Ioniq (AE): High Voltage Battery Control System / Pre-Charge Resistor. Description and operation

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Hybrid Control System / High Voltage Battery Control System / Pre-Charge Resistor. Description and operation

Description

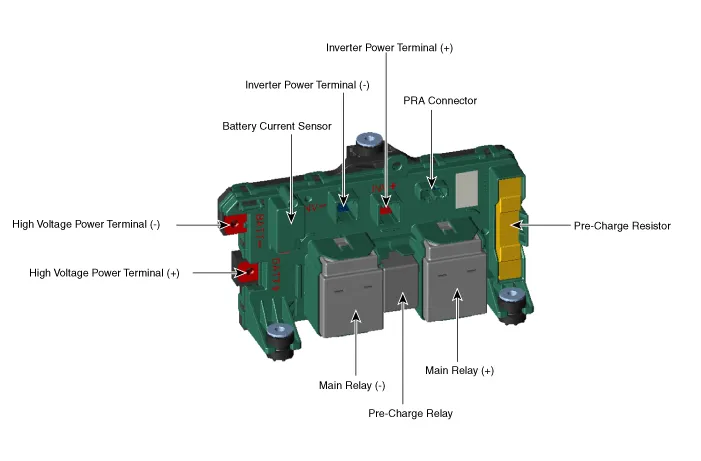

Pre-Charge Resistor is integrated into the Power Relay Assembly (PRA). It protects the high voltage circuit by limiting the current while the inverter capacitor is being charged.

    Removal1.Shut off the high voltage.(Refer to Hybrid Control System - "High Voltage Shut-off Procedures")2.Remove the rear seat cushion.(Refer to Body - "Rear Seat Assembly")3.

    Specification Item Specification Resistance (Ω)40 [20°C (68°F)]Rated Current (A)40
