Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.

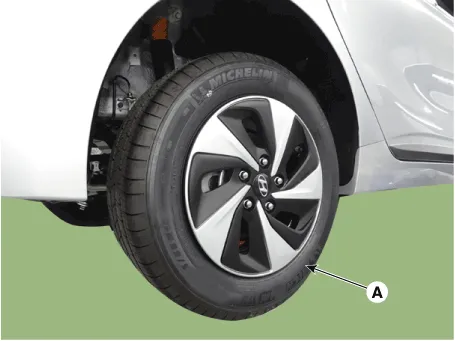

Remove the rear wheel and tire (A) from the rear hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)


•
Be careful not to damage the hub bolts when removing the rear wheel and tire (A).
3.

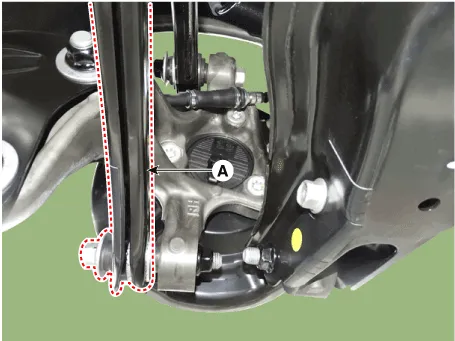

Loosen the bolt and then remove the assist arm (A) from the rear axle.
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)


•
Set up the transmission jack under the lower arm in order to remove the assist arm in no-load condition .
4.

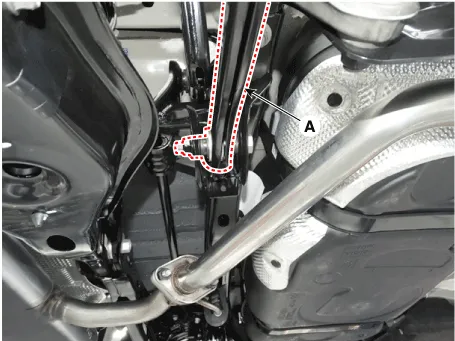

Loosen the bolt & nut and then remove the rear assist arm (A) with the rear cross member.
Tightening torque :
107.9 - 117.7 N.m (11.0 - 12.0 Kgf.m, 79.6 - 86.8 lb-ft)

5.
Install in the reverse order of removal.
6.
Check the alignment.
(Refer to Tires/Wheels - "Alignment")
Inspection
1.
Check the bushing for wear and deterioration.
2.
Check the rear lower arm for deformation..
3.
Check the coil spring and spring pad for deterioration and deformation.
4.
Check for all bolts and nut.
