Hyundai Ioniq (AE): Rear Bumper / Rear Bumper Cover. Components and components location
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Bumper / Rear Bumper Cover. Components and components location
| Component Location |

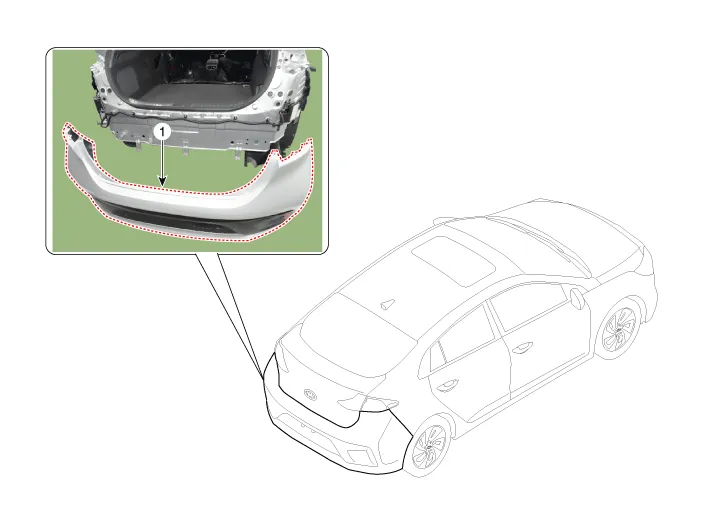

| 1. Rear bumper cover |
Components (1)1. Rear bumper side bracket [LH]2. Rear bumper side bracket [RH]3. Rear bumper coverComponents (2)1. Rear bumper side under cover [LH]2. Rear bumper side under cover [RH]3.
Replacement • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Heater Unit. Components and components location
Component Location1. Heater unit assemblyCompoents1. Heater core cover2. Heater core & Seal assembly3. Mode actuator [LH]4. Temperature control actuator [LH]5. Shower duct [LH]6. Duct sensor [Floor]7. PTC Heater8. Duct sensor [Vent]9. Heater & Evaporator lower case10.
