Hyundai Ioniq (AE): Lighting System / Rear Combination Lamp. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Lighting System / Rear Combination Lamp. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.

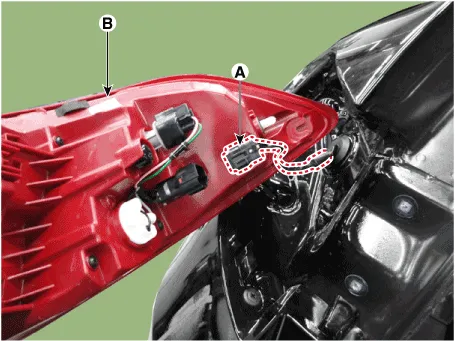

Remove the outside rear combination lamp assembly (B) after disconnecting the connector (A).

3.

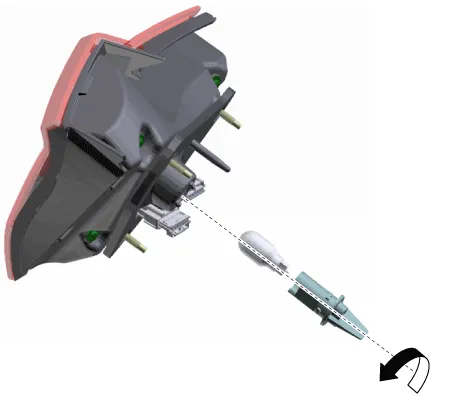

Remove the bulb (A) after turning it in the counter clock-wise direction.
[LED Type]

[Bulb Type]

4.
Disconnect the inside rear combination lamp connector after removing the rear combination lamp cover.
5.

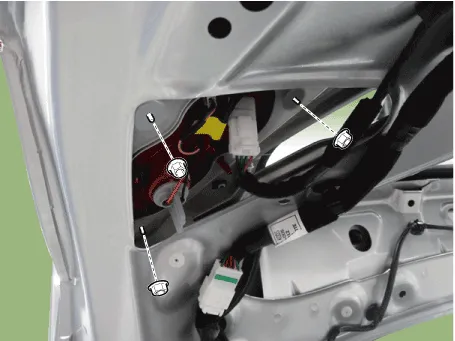

Remove the inside rear combination lamp assembly after loosening the nuts.

6.

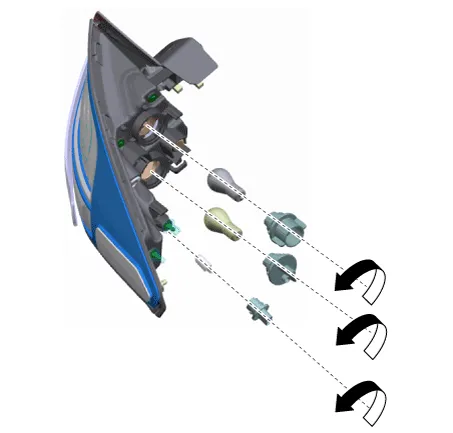

If it is necessary to replace the bulb, remove the bulb after removing the tailgate cover.

Installation
1.
Install the inside combination lamp assembly after assembling the bulb.
2.
Install the rear combination lamp assembly after assembling the bulbs and connecting the lamp connector.
