Hyundai Ioniq (AE): Rear Door / Rear Door Inside Handle. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Inside Handle. Repair procedures

Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

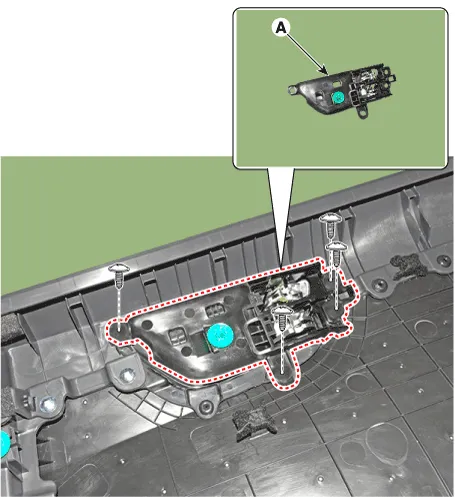

After loosening the mounting screws, remove the rear door inside handle (A).

3.
To install, reverse the removal procedure.

•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).

    Replacement    â€¢ Put on gloves to prevent hand injuries.    â€¢ When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

    Component Location 1. Rear door window glass

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Heater Core. Repair procedures

    Replacement1.Disconnect the negative (-) battery terminal. 2.Remove the heater and blower assembly.(Refer to Heater - "Heater Unit") 3.Loosen the mounting screws and remove the driver's temperature control actuator (A).4.Remove the heater core cover (A) after loosening the mounting screws.

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Description and operation

    DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
