Hyundai Ioniq (AE): Rear Door / Rear Door Trim. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Trim. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Be careful not to scratch the door trim and other parts.
1.

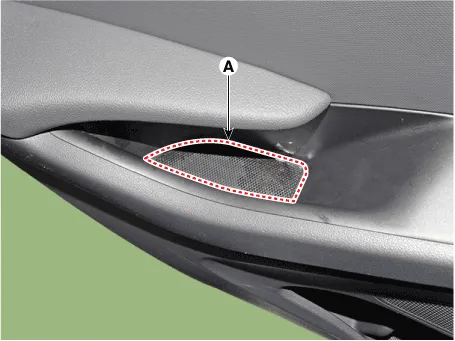

Using a screwdriver or remover, remove the rear door pull cap (A).

2.

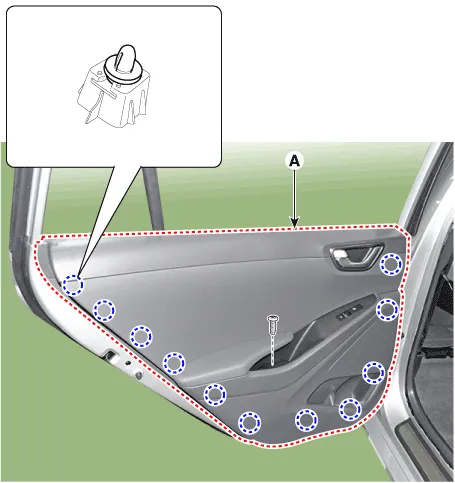

After loosening the mounting screws, remove the rear door trim (A).

3.
Remove the rear door inside handle cage (A).

4.

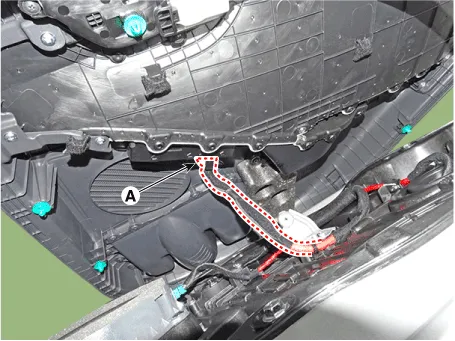

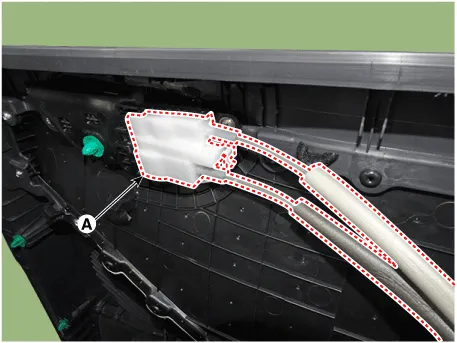

Disconnect the power window switch connector (A).

5.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
•
Make sure the glass moves properly.

    Component Location 1. Rear door trim

    Replacement1.Remove the rear door trim.(Refer to Rear Door - "Rear Door Trim")2.After loosening the mounting screws, remove the rear door inside handle (A).
