Hyundai Ioniq (AE): Rear Door / Rear Door Trim. Components and components location

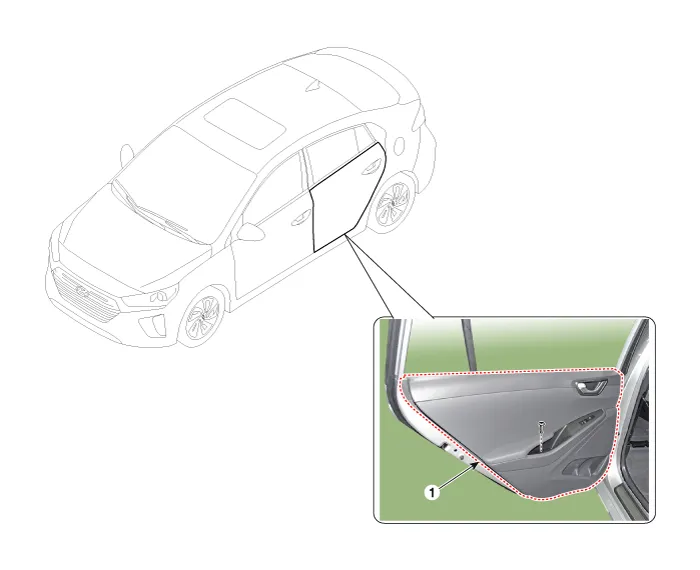

Component Location

1. Rear door trim


    AdjustmentGlass Adjustment    â€¢ Check the glass run channel for damage or deterioration, and replace them if necessary.

    Replacement    â€¢ Put on gloves to prevent hand injuries.    â€¢ When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Ambient Temperature Sensor. Repair procedures

    Inspection1.Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature.1. Ambient Sensor (+)2. Sensor groundSpecification Ambient temperature [°C (°F)] Resistance between terminal 1 and 2 (

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Description and operation

    DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
