| Inspection |
| 1. | Connect the GDS on the Data Link Connector (DLC). |
| 2. | Measure the output voltage of the RPS at idle and various engine speed.
|
| Removal |
| 1. | Turn the ignition switch OFF and disconnect the battery negative (-) cable. |
| 2. | Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")
|
| 3. | Remove the intake manifold. (Refer to Engine Mechanical System - "Intake Manifold") |

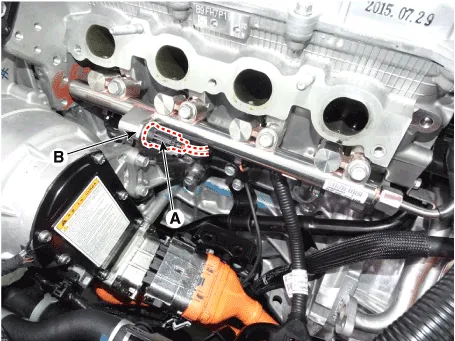

| 4. | Disconnect the rail pressure sensor connector (A), and then remove the sensor (B) from the delivery pipe.
|
| Installation |
|
| 1. | Install in the reverse order of removal.
|
Circuit Diagram
DescriptionAccelerator Position Sensor (APS) is installed on the accelerator pedal module and detects the rotation angle of the accelerator pedal. The APS is one of the most important sensors in engine control system, so it consists of the two sensors which adapt individual sensor power and ground line.
DescriptionThe ambient temperature sensor is located at the front of the condenser and detects ambient air temperature. It is a negative type thermistor; resistance will increase with lower temperature, and decrease with higher temperature.The sensor output will be used for discharge temperature control, temperature regulation door contrl, blower m
Inspection1.Turn the ignition switch OFF.2.Disconnect the intake actuator connector.3.Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4.Verify that the intake actuator operates to the recirculation position when connected in reverse.
