Hyundai Ioniq (AE): Hybrid Motor Control System / Resolver Sensor. Schematic diagrams

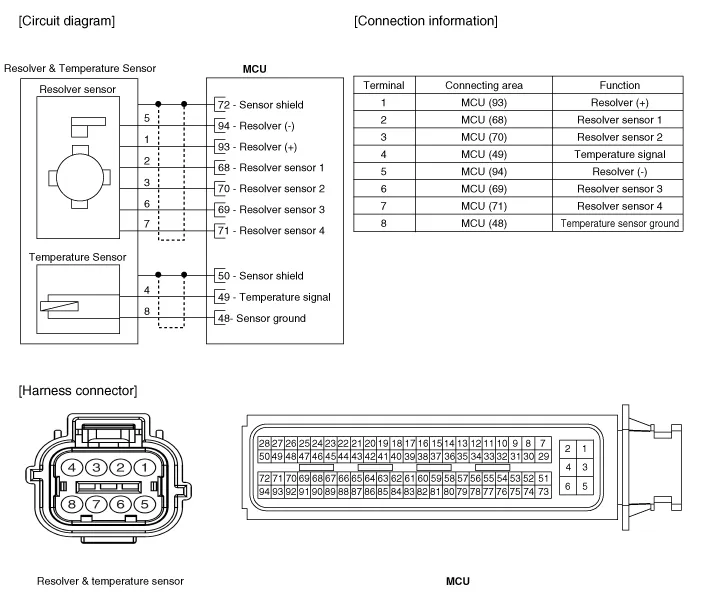

| Circuit Diagram |
| Resolver sensor (hybrid drive motor) |

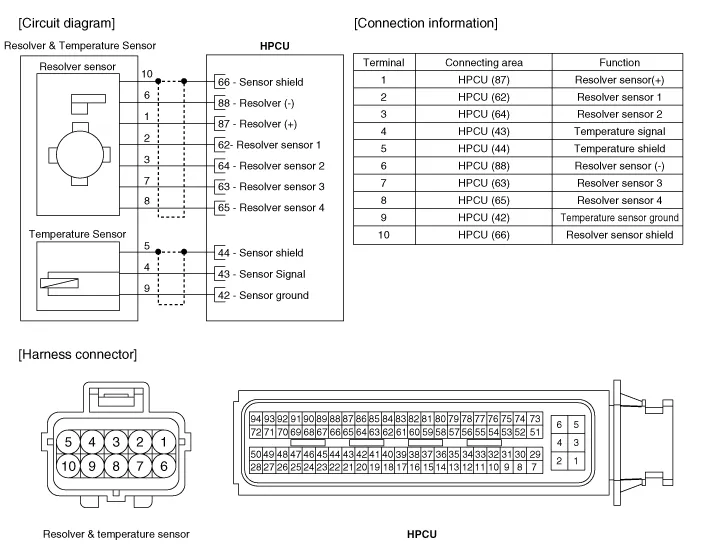

| Resolver sensor (HSG) |
Description• To efficiently control the drive motor, you need to know the absolute location of a motor rotor (permanent magnet).• Resolver detects the absolute location of the motor rotor.
Inspection1.Check the resolver sensor resistance. [Hybrid drive motor] Measuring equipment: Multimeter Category Inspection area Inspection criteria Remarks Resistance(Resolversensor)Pin 1 - 511.
