Removal
1.

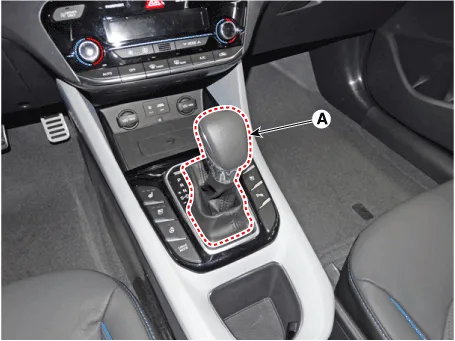

Remove the shift lever knob & boots (A) pull both of it up.

2.
Remove the floor console assembly.
(Refer to Body - "Floor Console")
3.

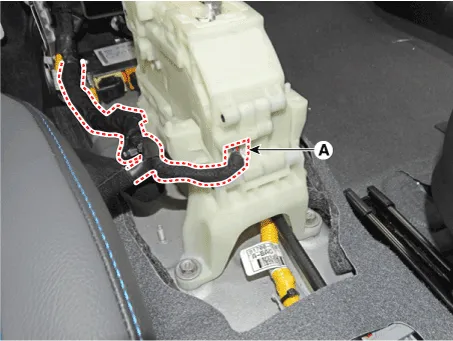

Disconnect the connector (A).

4.

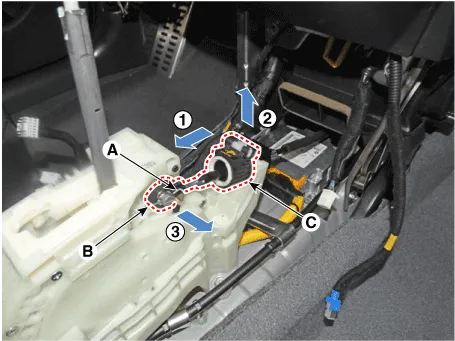

Disconnect the shift cable.
(1)
Disconnect the eye-end (B) after removing the snap pin (A).
(2)
Release the lock and then remove the cable socket (C).

5.

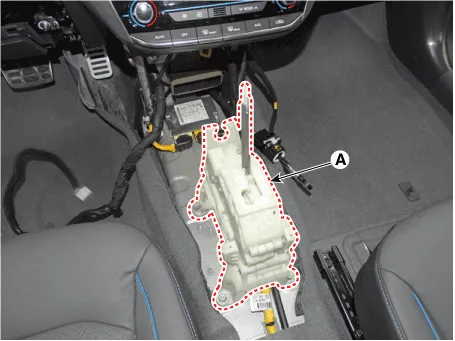

Remove the shift lever assembly (A) after removing the bolts.
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Installation
1.
Install in the reverse order of removal.

•
Before installing, check that the shift lever and manual control lever are placed in the "N" position.

•

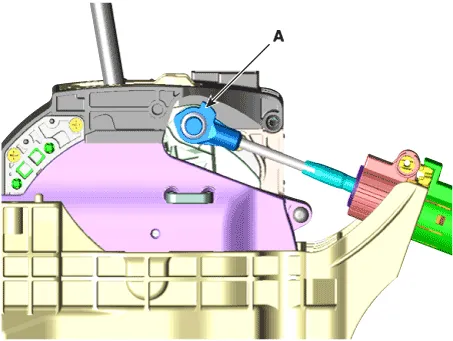

When assembling shift cable, the projection (A) must face upwards.

•

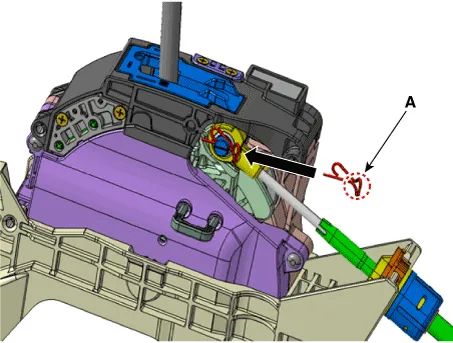

When assembling the snap pin, be careful about the correct direction.
–
The band portion (A) must point to the front of the vehicle.
–
The band portion (A) must point outwards.

•

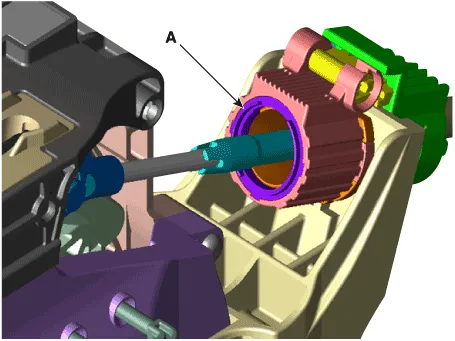

After installing the shift cable socket, check portion (A) to see if it projects outwards from the cap.

    Components1. Shift lever knob & boots assembly2. Shift lever assembly3. Shift cable4. Manual control lever5. Shift cable retainer

    Components1. Shift lever knob & boots assembly2. Shift lever assembly3. Shift cable4. Manual control lever5. Shift cable retainer
