Hyundai Ioniq (AE): Dual Clutch Transmission Control System / Shift Cable. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / DCT(Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Shift Cable. Components and components location

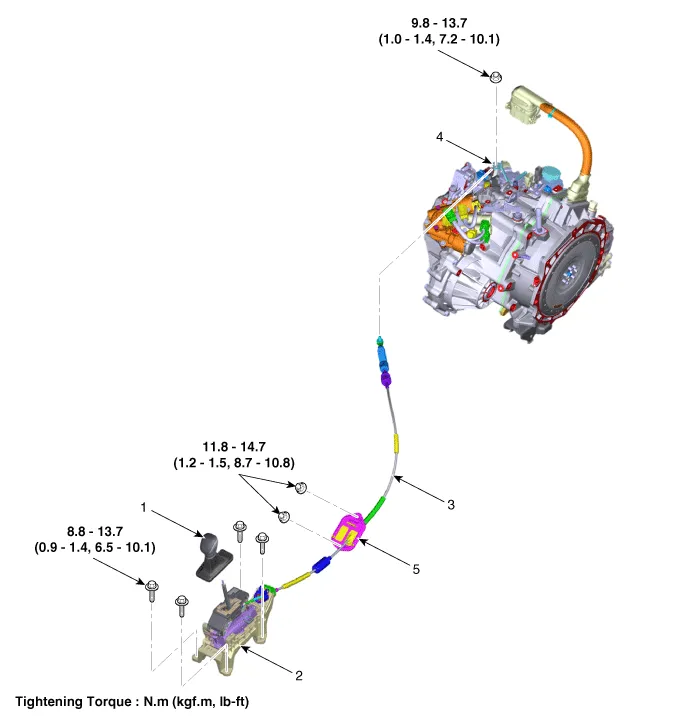

Components

1. Shift lever knob & boots assembly
2. Shift lever assembly
3. Shift cable

4. Manual control lever
5. Shift cable retainer

❮Shift Lever. Repair procedures

Removal 1.Remove the shift lever knob & boots (A) pull both of it up. 2.Remove the floor console assembly.(Refer to Body - "Floor Console")3.Disconnect the connector (A).

Shift Cable. Repair procedures❯

Removal • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
