Specifications
Ignition System
Items
Specification
Ignition coil
Primary resistance
0.56 Ω ± 10 %
Spark plugs
Type
ELR9ISP8+
Gap
0.7 - 0.8 mm (0.0275 - 0.0315 in)

Charging System
Item
Specification
Type
LiPB (Lithium ion Polymer Battery)
Number of Cells
8 Cells
Rated Voltage (V)
12.8
Capacity (Ah)
30
Max Power (kW)
1.8


•

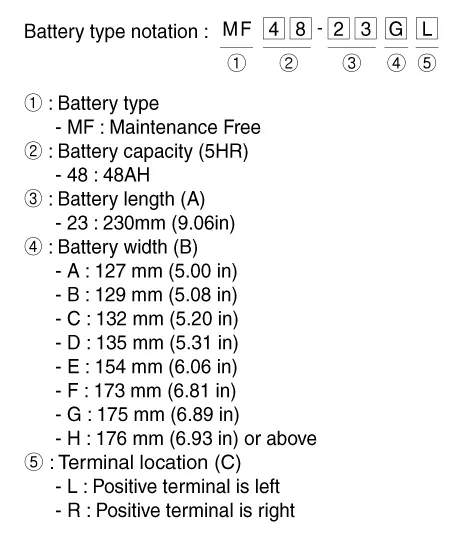

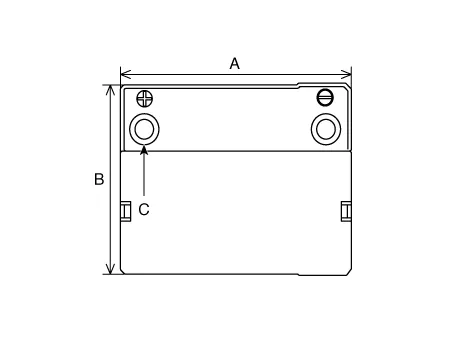

COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
•
RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
