| Specification |
|

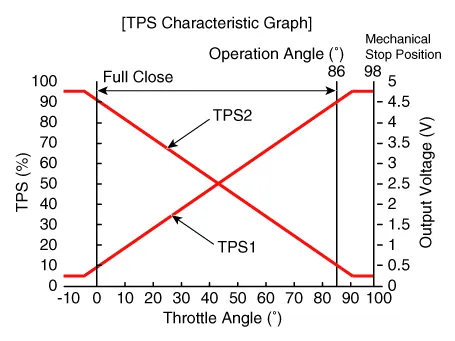

Throttle angle (°)
|
Output Voltage (V) [Vref=5V]
| |
|
TPS1
|
TPS2
| |
| 0 | 0.5 | 4.5 |
| 10 | 0.96 | 4.05 |
| 20 | 1.41 | 3.59 |
| 30 | 1.87 | 3.14 |
| 40 | 2.32 | 2.68 |
| 50 | 2.78 | 2.23 |
| 60 | 3.23 | 1.77 |
| 70 | 3.69 | 1.32 |
| 80 | 4.14 | 0.86 |
| 90 | 4.6 | 0.41 |
| 98 | 4.65 | 0.35 |
| C.T (0) | 0.5 | 4.5 |
| W.O.T (86) | 4.41 | 0.59 |

|
Item
|
Specification
|
| Coil Resistance (Ω) | 0.3 - 100 [20°C (68°F)] |
DescriptionThe Electronic Throttle Control (ETC) System consists of a throttle body with an integrated control motor and throttle position sensor (TPS).
Fail-Safe Mode Item Fail-Safe ETC MotorThrottle valve stuck at 7°TPSTPS 1 faultReplace it with TPS 2TPS 2 faultReplace it with TPS 1TPS 1, 2 faultThrottle Angle (°) Throttle valve stuck at 7°Duty (%)• TPS1 : 13.
Description The photo sensor is located at the center of the defrost nozzles.The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic temperature control
Inspection1.Turn the ignition switch OFF. 2.Disconnect the auto defogging connector. 3.Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
