Hyundai Ioniq (AE): Tailgate / Tailgate Trim. Components and components location

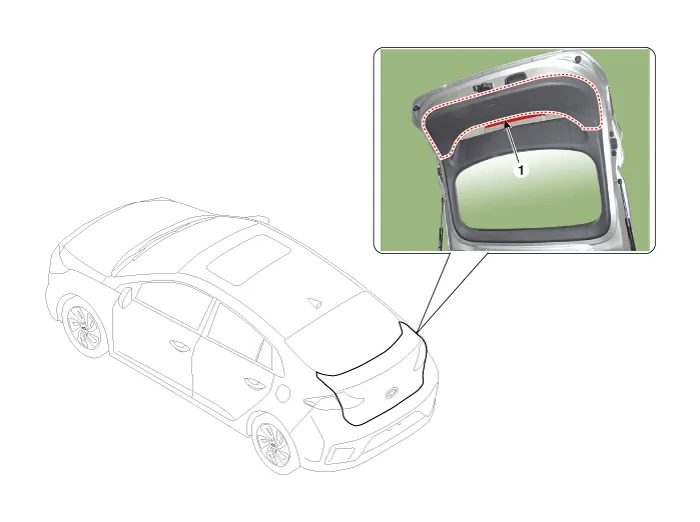

| Component Location |
| 1. Tailgate trim |
Replacement • Wear gloves to protect hands from injury. • When removing and installing the tailgate, an assistant is needed.
Replacement[Tailgate lower trim] • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
